SM79164

Features: 2.4V ~ 3.0V For V Version·Working voltage: 3.0V ~ 3.6V For L Version 4.5V ~ 5.5V For C Version·General 8052 family compatible·12 clocks per machine cycle·64K byte on chip program flash·4096 byte on-chip data RAM·Three 16 bit Timers/Counters·One Watch Dog Timer·Four 8-bit I/O ports for P...

product image

SM79164 Picture
See larger image
SeekIC No. : 004494047 Detail

SM79164: Features: 2.4V ~ 3.0V For V Version·Working voltage: 3.0V ~ 3.6V For L Version 4.5V ~ 5.5V For C Version·General 8052 family compatible·12 clocks per machine cycle·64K byte on chip program flash·40...

SM79164 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM79164
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

                               2.4V ~ 3.0V For V Version
·Working voltage: 3.0V ~ 3.6V For L Version
                               4.5V ~ 5.5V For C Version
·General 8052 family compatible
·12 clocks per machine cycle
·64K byte on chip program flash
·4096 byte on-chip data RAM
·Three 16 bit Timers/Counters
·One Watch Dog Timer
·Four 8-bit I/O ports for PDIP package
·Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package
·Full duplex serial channel
·Bit operation instruction
·Industrial Level
·8-bit Unsigned Division
·8-bit Unsigned Multiply
·BCD arithmetic
·Direct Addressing
·Indirect Addressing
·Nested Interrupt
·Two priority level interrupt
·A serial I/O port
·Power save modes: Idle mode and Power down mode
·Code protection function
·Low EMI (inhibit ALE)
·Bank mapping direct addressing mode for access on-chip RAM
·8 channel PWM function with P1.0 ~ P1.7


Pinout

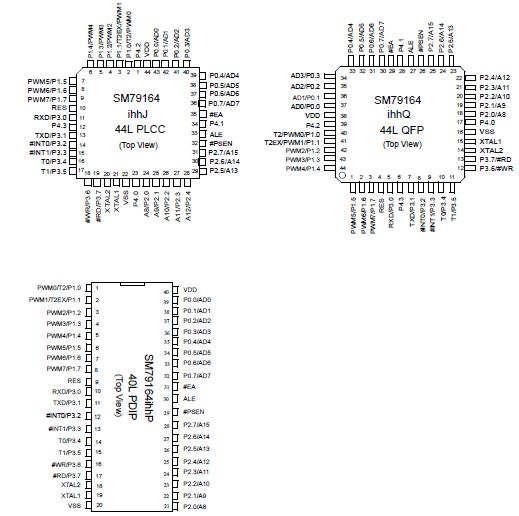

Connection Diagram


Description

The SM79164 series product is an 8 - bit single chip micro controller with 64KB on-chip flash and 4K byte RAM embedded. It is a derivative of the 8052 micro controller family. It has 8-channel PWM build-in. User can access on-chip expanded RAM with easier and faster way by its 'bank mapping direct addressing mode' scheme. With its hardware features and powerful instruction set, it's straight forward to make SM79164 a versatile and cost effective controller for those applications which demand up to 32 I/O pins for PDIP package or up to 36 I/O pins for PLCC/QFP package, or applications which need up to 64K byte flash memory for program data.To program the on-chip flash memory, a commercial writer is available to do it in parallel programming method.
