SM8702AM

Features: · Intel® Pentium® II, Pentium® III, and AMD x86- compatibles supported· 2.5/3.3V CPU clock outputs and IOAPIC clock output·14× SDRAM clock outputs (3 DIMMs)·2× CPU clock outputs (60), 66, 75, 83, 95, 100, 103, 112, (124), 133MHz CPU/SDRAM clock frequencies. Values in parenthe...

product image

SM8702AM Picture
See larger image
SeekIC No. : 004494084 Detail

SM8702AM: Features: · Intel® Pentium® II, Pentium® III, and AMD x86- compatibles supported· 2.5/3.3V CPU clock outputs and IOAPIC clock output·14× SDRAM clock outputs (3 DIMMs)·2× CPU clock output...

SM8702AM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM8702AM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Intel ® Pentium ® II, Pentium ® III, and AMD x86- compatibles supported
· 2.5/3.3V CPU clock outputs and IOAPIC clock output
·14 × SDRAM clock outputs (3 DIMMs)
·2× CPU clock outputs (60), 66, 75, 83, 95, 100, 103, 112, (124), 133MHz CPU/SDRAM clock frequencies. Values in parentheses are available as mask options.
· 6 × PCI bus clock outputs (one free-running output)33MHz or 1/2, 1/3, 1/4 of the CPU clock frequency
· 2  × reference clock outputs and 1 × IOAPIC clock output 14.318MHz REF/IOAPIC clock frequency
· 1 × 48MHz USB interface clock output
· 1 × 24MHz clock output for Super I/O chip
· I2C serial data bus for frequency/mode output control
· CPU-stop and PCI-stop functions
·Spread Spectrum Clock Generator (SSCG) outputs Center spread/Down spread, ± 0.5% or ± 1.5%
· 3.3V (VDD) and 2.5/3.3V (VDDL) supply voltages
· 48-pin SSOP package (pin compatible with ICS9148-26)


Pinout

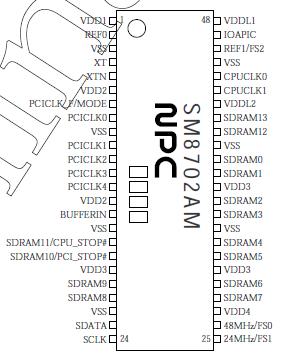

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Supply voltage range
VDD
(VDD1, VDD2, VDD3, VDD4)
-0.3 to 60
V
VDDL
(VDDL1, VDDL2)
-0.3 to 60
V
VSS
0
V
Input voltage range
VIN
-0.3 to VDD+0.3
V
Output voltage range

VOUT
-0.3 to VDD + 0.3
V
Power dissipation
PD
-55 to 125
Storage temperature range
Tstg
0.8
W



Description

The SM8702AM is a clock generator IC that can generate clock signals up to and exceeding 100MHz for personal computer (PC) motherboards. It uses a single 14.318MHz crystal oscillator element and 2 built-in PLLs to simultaneously and independently generate 2 CPU clocks, 6 PCI bus clocks, 2 reference clocks with the same frequency as the crystal element, 48MHz USB interface clock, and 24MHz Super I/O chip clock outputs. It also has 14 outputs that can function as SDRAM clocks by buffering an external input SDRAM clock
