Product Details

Description

Features:

* High-Performance Floating-Point Digital
   Signal Processor (DSP):
   - SM/SMJ320VC33-150
   - 13-ns Instruction Cycle Time
   - 150 Million Floating-Point Operations
   Per Second (MFLOPS)
   - 75 Million Instructions Per Second
   (MIPS)
* 34K × 32-Bit (1.1-Mbit) On-Chip Words of
   Dual-Access Static Random-Access
   Memory (SRAM) Configured in 2 × 16K plus
   2 × 1K Blocks to improve Internal
   Performance
* x5 Phase-Locked Loop (PLL) Clock
   Generator
* Very Low Power: < 200 mW @ 150 MFLOPS
* 32-Bit High-Performance CPU
* 16-/32-Bit Integer and 32-/40-Bit
   Floating-Point Operations
* Four Internally Decoded Page Strobes to
   Simplify Interface to I/O and Memory
   Devices
* Boot-Program Loader
* EDGEMODE Selectable External Interrupts
* 32-Bit Instruction Word, 24-Bit Addresses
* Eight Extended-Precision Registers
* Fabricated Using the 0.18-µm (leff-Effective
   Gate Length) TImeline Technology by
   Texas Instruments (TI)
* On-Chip Memory-Mapped Peripherals:
   - One Serial Port
   - Two 32-Bit Timers
   - Direct Memory Access (DMA)
   Coprocessor for Concurrent I/O and CPU
   Operation
* 164-Pin Low-Profile Quad Flatpack (HFG
   Suffix)
* 144-Pin Non-hermetic Ceramic Ball Grid
   Array (CBGA) (GNM Suffix)
* Two Address Generators With Eight
   Auxiliary Registers and Two Auxiliary
   Register Arithmetic Units (ARAUs)
* Two Low-Power Modes
* Two- and Three-Operand Instructions
* Parallel Arithmetic/Logic Unit (ALU) and
   Multiplier Execution in a Single Cycle
* Block-Repeat Capability
* Zero-Overhead Loops With Single-Cycle
   Branches
* Conditional Calls and Returns
* Interlocked Instructions for
   Multiprocessing Support
* Bus-Control Registers Configure
   Strobe-Control Wait-State Generation
* 1.8-V (Core) and 3.3-V (I/O) Supply Voltages

Pinout

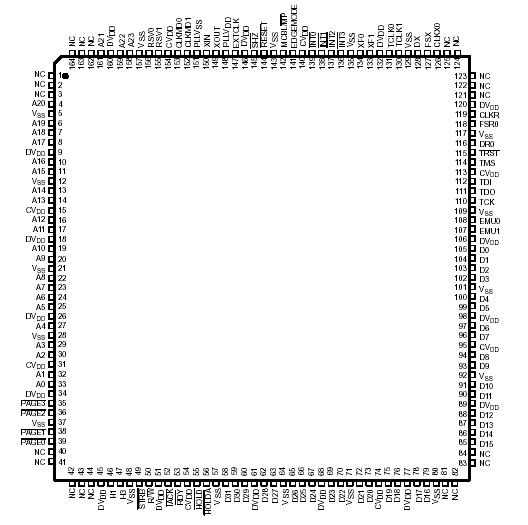

Connection Diagram

Specifications

Supply voltage range, DV_DD‡ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .- 0.3 V to 4 V
Supply voltage range, CV_DD‡ . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ... . .- 0.3 V to 2.4 V
Input voltage range, V_I§ . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .-1 V to 4.6 V
Output voltage range, V_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.3 V to 4.6 V
Continuous power dissipation (worst case)¶ . . . . . . . . . . . . ... . . . . . . . . . . . .500 mW
Operating case temperature range, T_C . . . . . . . . . . . . . . . . . . . . . . .. . .-55 to 125
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . ... . . .- 55 to 150

Description

The SM/SMJ320VC33 DSP is a 32-bit, floating-point processor manufactured in 0.18-µm four-level-metal CMOS (TImeline) technology. The SM/SMJ320VC33 is part of the SM320C3x generation of DSPs from Texas Instruments.

The SM320C3x internal busing and special digital-signal-processing instruction set have the speed and flexibility to execute up to 150 million floating-point operations per second (MFLOPS). The SM/SMJ320VC33 optimizes speed by implementing functions in hardware that other processors implement through software or microcode. This hardware-intensive approach provides performance previously unavailable on a single chip.
