SN54AC374

Features: *2-V to 6-V VCC Operation*Inputs Accept Voltages to 6 V*Max tpd of 9.5 ns at 5 V*3-State Noninverting Outputs Drive Bus Lines Directly*Full Parallel Access for LoadingApplicationAudioAutomotiveBroadbandDigital ControlMilitaryOptical NetworkingSecurityTelephonyVideo & ImagingWirelessP...

product image

SN54AC374 Picture
See larger image
SeekIC No. : 004496407 Detail

SN54AC374: Features: *2-V to 6-V VCC Operation*Inputs Accept Voltages to 6 V*Max tpd of 9.5 ns at 5 V*3-State Noninverting Outputs Drive Bus Lines Directly*Full Parallel Access for LoadingApplicationAudioAutom...

SN54AC374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54AC374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*2-V to 6-V VCC  Operation
*Inputs Accept Voltages to 6 V
*Max tpd  of 9.5 ns at 5 V
*3-State Noninverting Outputs Drive Bus Lines Directly
*Full Parallel Access for Loading


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

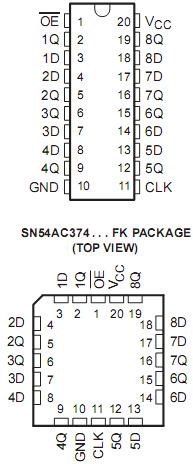

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . .  . . . . . . . . . . . . . . . . . . . . -0.5 V to 7 V
Input voltage range, VI(see Note 1)  . . . . . . . . . . . . . . . . . . .-0.5 V to 7 V
Output voltage range, VO(see Note 1)  . . .  . . . .. . .-0.5 V to VCC  + 0.5 V
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK(VO < 0 or VO > VCC )  . . . . . . . . . . . . . ±20 mA
Continuous output current, IO(VO  = 0 to VCC)  . . . . .  . . . . . . . .  .±50mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . ±200 mA
Package thermal impedance, JA(see Note 2):DB package . . . . . . 70/W
                                                                         DW package . . .. . .58/W
                                                                         N package. . .. . . ...69/W
                                                                         NS package. . .. . . .60/W
                                                                         PW package. . .. . . 83/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . .-65 to 150


Description

    These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low impedance loads. The SN54AC374 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

    The eight flip-flops of the'AC374 devices ar D-type edge-triggered flip-flops. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels set up at the data (D) inputs.

    A buffered output-enable (OE) input of SN54AC374 can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs of SN54AC374 neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines in bus organized systems without need for interface or pullup components.
