Features:

· Member of the Texas Instruments WidebusE Family
· Independent Asynchronous Inputs and Outputs
· 1024 Words × 18 Bits
· Read and Write Operations Can Be Synchronized to Independent System Clocks
· Programmable Almost-Full/Almost-Empty Flag
· Input-Ready, Output-Ready, and Half-Full Flags
· Cascadable in Word Width and/or Word Depth
· Fast Access Times of 20 ns With a 50-pF Load
· High Output Drive for Direct Bus Interface
· Package Options Include 68-Pin Ceramic PGA (GB) or Space-Saving 68-Pin Ceramic Quad Flatpack (HV)†


Pinout

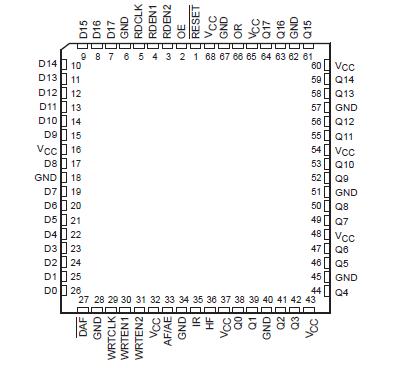

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . .  5.5 V
Operating free-air temperature range, TA . . . . . . 55°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . .  65°C to 150°C


Description

A FIFO memory is a storage device that allows data to be written into and read from its array at independent data rates. The SN54ACT7811 is a 1024 * 18-bit FIFO for high speed and fast access times. SN54ACT7811 processes data at rates up to 28.5 MHz and access times of 20 ns in a bit-parallel format. Data outputs are noninverting with respect to the data inputs. Expansion is easily accomplished in both word width and word depth. The SN54ACT7811 has normal input-bus-to-output-bus asynchronous operation. The special enable circuitry adds the ability to synchronize independent read and write (interrupts, requests) to their respective system clock.

The SN54ACT7811 is characterized for operation from 55°C to 125°C.
