SN54ACT7881

Features: · Member of the Texas Instruments WidebusE Family· Independent Asynchronous Inputs and Outputs· Read and Write Operations Can Be Synchronized to Independent System Clocks· Programmable Almost-Full/Almost-Empty Flag· Pin-to-Pin Compatible With SN74ACT7882, SN74ACT7884, and SN74ACT7811· In...

product image

SN54ACT7881 Picture
See larger image
SeekIC No. : 004496447 Detail

SN54ACT7881: Features: · Member of the Texas Instruments WidebusE Family· Independent Asynchronous Inputs and Outputs· Read and Write Operations Can Be Synchronized to Independent System Clocks· Programmable Alm...

SN54ACT7881 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54ACT7881
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Member of the Texas Instruments WidebusE Family
· Independent Asynchronous Inputs and Outputs
· Read and Write Operations Can Be Synchronized to Independent System Clocks
· Programmable Almost-Full/Almost-Empty Flag
· Pin-to-Pin Compatible With SN74ACT7882, SN74ACT7884, and SN74ACT7811
· Input-Ready, Output-Ready, and Half-Full Flags
· Cascadable in Word Width and/or Word Depth
· Fast Access Times of 13 ns With a 50-pF Load
· High Output Drive for Direct Bus Interface
· Released as DSCC SMD (Standard Microcircuit Drawing) 5962-9562701QYA and 5962-9562701NXD
· Package Options Include 68-Pin Ceramic Quad Flat (HV) and 80-Pin Plastic Quad Flat (PN) Packages


Pinout

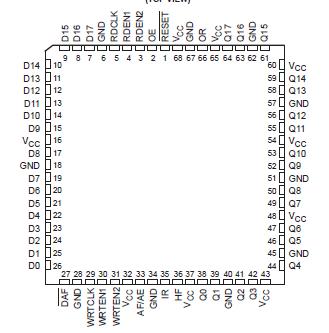

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Voltage range applied to a disabled 3-state output . . .  0.5 V to 5.5 V
Storage temperature range, Tstg . . . . . . . . . . . . . . . .  65°C to 150°C
