Product Details

Description



Features:

Operating Range 2-V to 5.5-V VCC
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
   2000-V Human-Body Model (A114-A)
   200-V Machine Model (A115-A)
   1000-V Charged-Device Model (C101)

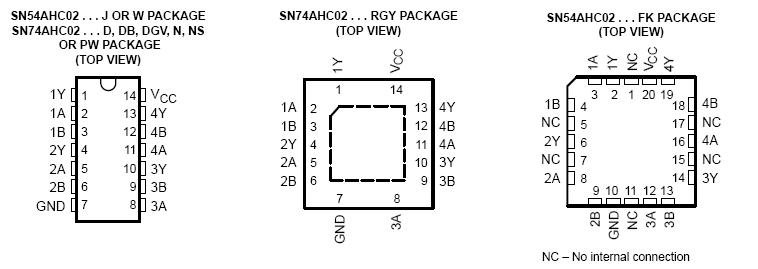

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±50 mA
Package thermal impedance, JA : D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                      DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                      DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                      N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80°C/W
                                                      NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76°C/W
                                                      PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
                                                      RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C


Description

The 'AHC02 devices contain four independent 2-input NOR gates that perform the Boolean function Y = A B or Y = A + B in positive logic.
