Features:

Operating Range 2-V to 5.5-V VCC
Latch-Up Performance Exceeds 250 mA Per JESD 17


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

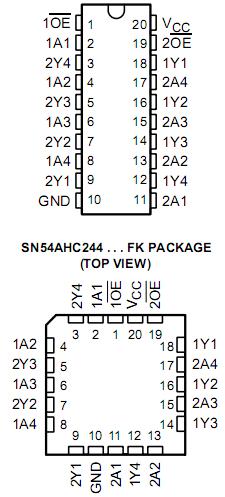

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . .. . .. . . .. . . .. . . . .. . 0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . .. . . .. .. . . . .0.5 V to 7 V
Output voltage range, VO (see Note 1)  . . . . . . . . . . .. . 0.5 V to V  + 0.5 V
Input clamp current, IIK (VI < 0)  . . . . . . . . .. . . .. . . .. . . .. . . .. .  . . .20 mA
Output clamp current, IOK (VO < 0 or VO > VCC). . . . . . . .. . . .... . . . .±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . .. . . .. . . .. . . ..  . .±25 mA
Continuous current through VCC or GND . .. . . .. . . .. . . .. . .. . . . .  . . ±50 mA
Package thermal impedance, JA (see Note 2): DB package  .. . . . . . 70°C/W
                                                                          DGV package   . . . .  .92°C/W
                                                                          DW package   . . . . . . 58°C/W
                                                                          N package   . . . . . . . .69°C/W
                                                                          NS package   . . . . . . .60°C/W
                                                                          PW package   . . . . . . .83°C/W
Storage temperature range, Tstg  . . . . . .. . . .. . . .. . . .. .. . .65°C to 150°C


Description

      These octal buffers/drivers of SN54AHC244 are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.

      The SN54AHC244 devices are organized as two 4-bit buffers/line drivers with separate output-enable (OE) inputs. When OE is low, the SN54AHC244 passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

      To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor SN54AHC244 is determined by the current-sinking capability of the driver.
