SN54ALS468A

Features: • Mechanically and Functionally Interchangeable With DM71/81LS97 and DM71/81LS98• P-N-P Inputs Reduce Bus Loading• 3-State Outputs Rated at IOL of 12 mA and 24 mA for SN54ALS' and SN74ALS', Respectively• Package Options Include Plastic Small Outline Packages, Cera...

product image

SN54ALS468A Picture
See larger image
SeekIC No. : 004496600 Detail

SN54ALS468A: Features: • Mechanically and Functionally Interchangeable With DM71/81LS97 and DM71/81LS98• P-N-P Inputs Reduce Bus Loading• 3-State Outputs Rated at IOL of 12 mA and 24 mA for SN5...

SN54ALS468A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54ALS468A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Mechanically and Functionally
  Interchangeable With DM71/81LS97 and
  DM71/81LS98
• P-N-P Inputs Reduce Bus Loading
• 3-State Outputs Rated at IOL of 12 mA and
  24 mA for SN54ALS' and SN74ALS', Respectively
• Package Options Include Plastic Small
  Outline Packages, Ceramic Chip Carriers,
  and Standard Plastic and Ceramic 300-mil DIPs
• Dependable Texas Instruments Quality and Reliability


Pinout

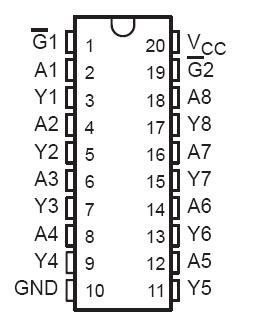

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 V
Operating free-air temperature range: SN54ALS465A thru SN54ALS468A . . . . . . . . . . . . . 55°C to 125°C
SN74ALS465A thru SN74ALS468A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C


Description

These octal buffers utilize the latest advanced low-power Schottky technology. The SN54ALS465A, SN54ALS466A have a two-input active-low AND enable gate controlling all eight data buffers. The SN54ALS467A, and SN54ALS468A  have two separate active-low enable inputs each controlling four data buffers. In each case, a high level on any G places the affected outputs at high impedance.

The SN54ALS465A, SN54ALS466A, SN54ALS467A, and SN54ALS468A are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS465A, SN74ALS466A, SN74ALS467A, and SN74ALS468A are characterized for operation from 0°C to 70°C.
