Product Details

Description



Features:

• Functionally Equivalent to AMD's AM29825
  and AM29826
• Improved IOH Specifications
• Multiple Output Enables Allow Multiuser
  Control of the Interface
• Outputs Have Undershoot Protection Circuitry
• Powerup High-impedance State
• Package Options Include Plastic Small
  Outline Packages, Both Plastic and
  Ceramic Chip Carriers, and Standard
  Plastic and Ceramic 300-mil DIPs
• Buffered Control Inputs to Reduce DC Loading Effect
• Dependable Texas Instruments Quality and Reliability

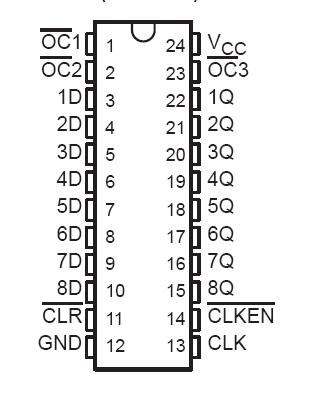

Pinout

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.5 V
Operating free-air temperature range:
SN54AS825, SN54AS826 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
SN74AS825, SN74AS826 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C


Description

These 8-bit flip-flops of SN54AS825 feature 3-state outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. SN54AS825 is particularly suitable for implementing multiuser registers, I/O ports, bidirectional bus drivers, and working registers.

With the clock enable (CLKEN) low, the eight D-type edge-triggered flip-flops of SN54AS825 enter data on the low-to-high transitions of the clock. Taking CLKEN high will disable the clock buffer, thus latching the outputs. The SN54AS825 has noninverting D inputs and the 'AS826 has inverting D inputs. Taking the CLR input low causes the eight Q outputs to go low independently of the clock.
