SN54GTL1655

Features:

    Members of the Texas Instruments Widebus^TM Family
    UBT^TM(Universal Bus Transceiver) Combines D-Type Latches and D-Type Flip-Flops for Operation in Transparent,Latched, or Clocked Mode
    Translate Between GTL/GTL+ Signal Level and LVTTL Logic Levels
    High-Drive (100 mA),Low-Output-Impedance (12 ) Bus Transceiver (B Port)
    Edge-Rate-Control Input Configures the B-Port Output Rise and Fall Times
    I_off , Power-Up 3-State, and BIAS V_CC Support Live Insertion
    Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors on A Port
    Distributed V_CC and GND-Pin Configuration Minimizes High-Speed Switching Noise
    Package Options Include Thin Shrink Small-Outline (DGG) and Ceramic Quad Flat (HV) Packages

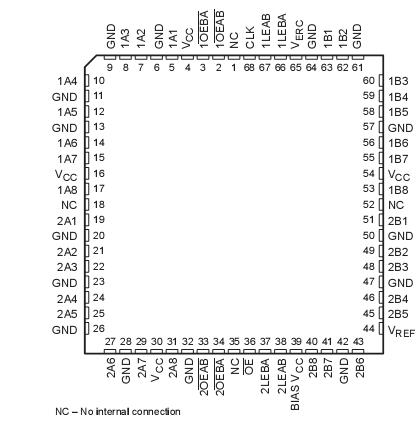

Pinout




Specifications

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
Supply voltage range, V_CC , BIAS V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .. . 0.5 V to 4.6 V
Input voltage range, V_I(see Note 1): A-port and control pins  . . . . . . . . . .   . .  . . 0.5 V to 4.6 V
                                                           B port, V_ERC , and V_REF    . . . . . . . . . .. . . . . 0.5 V to 4.6 V
 Voltage range applied to any output in the high or power-off state, V_O
(see Note 1): A port  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .. . .  . . 0.5 V to 4.6 V
                      B port  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .. . . . . . . . .  . 0.5 V to 4.6 V
Current into any output in the low state, I_O: A port  . . . . . . . . . . . . . . .  . . . . . .   . . . . . .. .  48 mA
                                                                       B port  . . . . . . . . . . . . . . . . . . .. .  . . . . .. .    200 mA
Current into any A-port output in the high state, I_O (see Note 2)  . . . . . . . . . . . . .  .. . .  . .  48 mA
Continuous current through each V_CC  or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . .. .   . ... . 100 mA
Input clamp current, I_IK(V_I < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .  50 mA
Output clamp current, I^_OK  (V^_O< 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  . .  . . . 50 mA
Package thermal impedance, q JA (see Note 3)  . . . . . . . . . . . . . . . . . . . . . . .  . . . .  . . . . . 55°C/W
Storage temperature range, T_stg 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . .. .  C to 150 C


Description

The ^,SN54GTL1655 is high-drive (100 mA),low-output-impedance (12 W ) 16-bit universal bus transceivers (UBT) that provide LVTTL-to-GTL/GTL+ and GTL/GTL+-to-LVTTL signal-level translation. SN54GTL1655 is partitioned as two 8-bit transceivers and combine D-type flip-flops and D-type latches to allow for transparent, latched,and clocked modes of data transfer similar to the'16501 function. SN54GTL1655 provides an interface between cards operating at LVTTL logic levels and a backplane operating at GTL/GTL+signal levels. Higher-speed operation is a direct result of the reduced output swing (<1 V), reduced input threshold levels and output edge control (OEC(TM)). The high drive is suitable for driving double-terminated low-impedance backplanes using incident-wave switching.
