SN54LV07A

PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 7 VInput voltage range, VI(see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 VVoltage range applied to ...

product image

SN54LV07A Picture
See larger image
SeekIC No. : 004497051 Detail

SN54LV07A: PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 7 VInput voltage range, VI(see Note 1). . . . . . . ...

SN54LV07A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54LV07A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

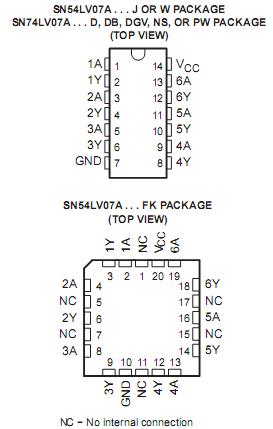

Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Input voltage range, VI (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −0.5 V to 7 V
Voltage range applied to any output in the high-impedance or power-off state, VO
(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Input clamp current, IIK(VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−20 mA
Output clamp current, IOK (VO< 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . ... −50 mA
Continuous output current, IO (VO = 0 to VCC). . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .  −35 mA
Continuous current through VCC or GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Package thermal impedance, JA (see Note 2):D package. . . . . . . . . . . . . . . . . . . . . . .. 86°C/W
                                                                          DB package. . . . . . . . . . . . . . . . . . . . . .  96°C/W
                                                                          DGV package. . . . . . . . . . . . . . . . . . . .. 127°C/W
                                                                          NS package . . . . . . . . . . . . . . . . . . . . . . 76°C/W
                                                                          PW package. . . . . . . . . . . . . . . . . . . . .. 113°C/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C



Description

These hex buffers/drivers of LV07A are designed for 2-V to 5.5-V VCC operation.

The 'LV07A devices perform the Boolean function Y = A in positive logic.

The open-drain outputs of LV07A require pullup resistors to perform correctly and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

LV07A is fully specified for partial-power-down applications using Ioff. . The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
