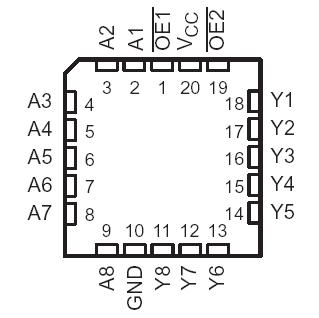

Connection Diagram

Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.6
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7
Voltage range applied to any output in the high-impedance
or power-off state, V_O (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7
Voltage range applied to any output in the high state, V_O (see Note 1) . . .−0.5 V to VCC + 0.5
Current into any output in the low state, IO: SN54LVTH541 . . . . . . . . . . . . . . . . . . . . . . .96 mA
                                                                       SN74LVTH541 . . . . . . . . . . . . . . . . . . . . . .128 mA
Current into any output in the high state, IO (see Note 2): SN54LVTH541 . . . . . . .. . . . . .48 mA
                                                                                             SN74LVTH541 . . . . . . . . . . . .64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .−50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−50 mA
Package thermal impedance, JA (see Note 3): DB package . . . . . . . . . . . . . . . . . . . . . .70°C/W
                                                                           DW package . . . . . . . . . . . . . . . . . . . . .58°C/W
                                                                            NS package . . . . . . . . . . . . . . . . . . . . .60°C/W
                                                                            PW package . . . . . . . . . . . . . . . . . . . . .83°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .−65°C to 150°C
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
             2. This current flows only when the output is in the high state and VO > VCC.
             3. The package thermal impedance is calculated in accordance with JESD 51-7.

Description

These octal buffers/drivers of LVTH541 are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The 'LVTH541 devices are ideal for driving bus lines or buffer-memory address registers. These devices feature inputs and outputs on opposite sides of the package that facilitate printed circuit board layout.

The 3-state control gate is a 2-input AND gate with active-low inputs so that, if either output-enable (OE1 or OE2) input is high, all outputs of LVTH541 are in the high-impedance state.
