SN55ALS160: Features: *8-Channel Bidirectional Transceivers*High-Speed Advanced Low-Power Schottky(ALS) Circuitry*Low Power Dissipation: SN55ALS160 . . . 56 mW Max Per Channel SN75ALS160 . . . 46 mW Max Per Cha...

SN55ALS160 Data Sheet

Get Latest Price

Part Number:: SN55ALS160
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

* 8-Channel Bidirectional Transceivers
* High-Speed Advanced Low-Power Schottky(ALS) Circuitry
* Low Power Dissipation:
   SN55ALS160 . . . 56 mW Max Per Channel
   SN75ALS160 . . . 46 mW Max Per Channel
* Fast Propagation Times . . . 20 ns Max
* High-Impedance pnp Inputs
* Receiver Hysteresis:
   SN55ALS160 . . . 550 mV Typ
   SN75ALS160 . . . 650 mV Typ
* Open-Collector Driver Output Option
* No Loading of Bus When Device Is Powered Down (VCC = 0)
* Power-Up/Power-Down Protection(Glitch Free)

Pinout

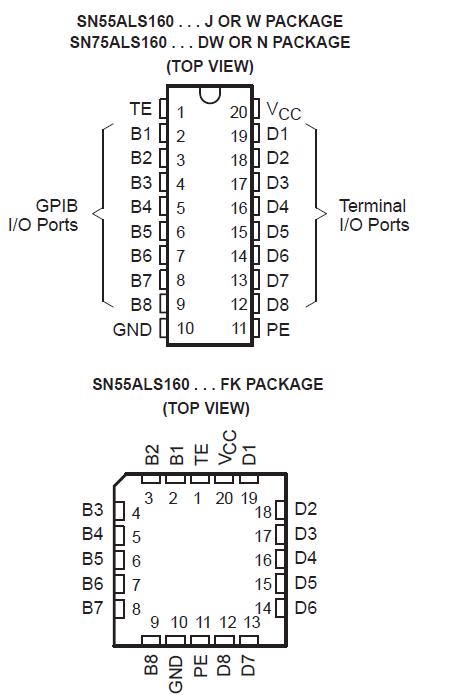

Connection Diagram

Specifications

Supply voltage, V_CC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... . . . . . . 7 V
Input voltage, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Low-level driver output current, I_OL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . 100 mA
Continuous total dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...... ... . . See Dissipation Rating Table
Operating free-air temperature range, TA: SN55ALS160 . . . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . 55°C to 125°C
SN75ALS160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Case temperature for 60 seconds, T_C: FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ........ . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: DW or N package . . . . . . . .............. . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from the case for 60 seconds: J or W package . . . . . . . . ............. . . . . 300°C

Description

The SN55ALS160 and SN75ALS160 eightchannel general-purpose interface bustransceivers are monolithic, high-speed, advanced low-power Schottky (ALS) devices designed for two-way data communications over single-ended transmission lines. SN55ALS160 and SN75ALS160 are designed to meet the requirements of IEEE Standard 488-1978. The transceivers feature driver outputs that can be operated in either the passive-pullup or 3-state mode. If talk enable (TE) is high, these ports of SN55ALS160 and SN75ALS160 have the characteristics of passive-pullup outputs when pullup enable (PE) is low and of 3-state outputs when PE is high. Taking TE low places these ports in the high-impedance state. The driver outputs are designed to handle loads up to 48 mA of sink current.

An active turn-off feature has been incorporated into the bus-terminating resistors so that the SN55ALS160 and SN75ALS160 exhibits a high impedance to the bus when VCC = 0. When combined with the SN55ALS161, SN75ALS161, or SN75ALS162 bus management transceiver, the pair provides the complete 16-wire interface for the IEEE-488 bus.

The SN55ALS160 is characterized for operation from 55°C to 125°C. The SN75ALS160 is characterized for operation from 0°C to 70°C.
