SN65C3243

Features:

 Operate With 3-V to 5.5-V VCC Supply
 Always-Active Noninverting Receiver Output (ROUT2B)
 Low Standby Current . . . 1 A Typical
 External Capacitors . . . 4 * 0.1 F
 Accept 5-V Logic Input With 3.3-V Supply
 Inter-Operable With SN65C3238,SN75C3238
 Support Operation From 250 kbit/s to 1 Mbit/s
 RS-232 Bus-Pin ESD Protection Exceeds ±15-kV Using Human-Body Model (HBM)
 Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II


Application

− Battery-Powered Systems, PDAs,Notebooks, Laptops, Palmtop PCs, and Hand-Held Equipment

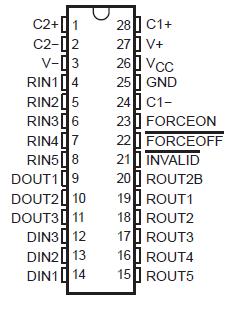

Pinout




Specifications

Supply voltage range, V_CC (see Note 1) . . . . . . . . . . . . . . . . . . . . . −0.3 V to 6 V
Positive output supply voltage range, V₊ (see Note 1) . . . . . . . . . . −0.3 V to 7 V
Negative output supply voltage range, V₋ (see Note 1) . . . . . . . . . 0.3 V to −7 V
Supply voltage difference, V₊ − V₋ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . 13 V
Input voltage range, V_I: Driver (FORCEOFF, FORCEON) . . . . . . . . . . −0.3 V to 6 V
                                       Receiver.. . .. . . . . . . .. . . . . . . . . . . . . . . . −25 V to 25 V
Output voltage range, V_O: Driver . . . . .  . . . . . . . . . . . . . . . . . . −13.2 V to 13.2 V
Package thermal impedance, _JA (see Notes 2 and 3): DB package   . . . 62°C/W
                                                                                      DW package  . . . 46°C/W
                                                                                      PW package. . . . 62°C/W
Operating virtual junction temperature, T_J . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage temperature range, T_stg . . .  . . . . . . . . . . . . . . . . . . . . −65°C to 150°C


Description

The SN65C3243 and SN75C3243 consist of three line drivers, five line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin-to-pin (serial-port connection pins, including GND). SN65C3243 and SN75C3243 provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. In addition, SN65C3243 and SN75C3243 include an always-active noninverting output (ROUT2B), which allows applications using the ring indicator to transmit data while the devices are powered down. The devices operate at data signaling rates up to 1 Mbit/s and an increased slew-rate range of 24 V/s to 150 V/s.

Flexible control options for power management are available when the serial port is inactive. The auto-powerdown feature functions when FORCEON is low and FORCEOFF is high. During this mode of operation, if the SN65C3243 and SN75C3243 do not sense a valid RS-232 signal, the driver outputs of SN65C3243 and SN75C3243 are disabled. If FORCEOFF is set low, both drivers and receivers (except ROUT2B) are shut off, and the supply current is reduced to 1
A.Disconnecting the serial port or turning off the peripheral drivers causes the auto-powerdown condition to occur.
