Product Details

Description



Features:

` High Speed (>1000 Mbps) Upgrade for DS90CP22 2x2 LVDS Crosspoint Switch
` LVPECL Crosspoint Switch Available in SN65LVCP23
` Low-Jitter 1000-Mbps Fully Differential Data Path
` 20 ps (Typ), 50 ps (Max), of Peak-to-Peak Jitter With PRBS = 2231 Pattern at 1000 Mbps
` Less Than 200 mW (Typ), 280 mW (Max) Total Power Dissipation
` Balanced Output Impedance
` Output (Channel-to-Channel) Skew Is 10 ps (Typ), 20 ps (Max)
` Configurable as 2:1 Mux, 1:2 Demux, Repeater or 1:2 Signal Splitter
` Inputs Accept LVDS, LVPECL, and CML Signals
` Fast Switch Time of 1.2 ns (Typ), 1.5 ns (Max)
` Fast Propagation Delay of 0.65 ns (Typ), 0.8 ns (Max)
` Receiver Input Threshold < ±50 mV
` 16 Lead SOIC and TSSOP Packages
` Inter-Operates With TIA/EIA644A LVDS Standard
` Operating Temperature: 40°C to 85°C


Application

· Base stations
· Add/Drop Muxes
· Protection Switching for Serial Backplanes
· Network Switches/Routers
· Optical Networking Line Cards/Switches
· Clock Distribution

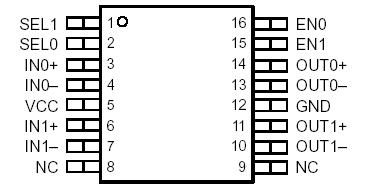

Pinout

Connection Diagram


Specifications
UNITS
Supply voltage(2) range, VCC
0.5 V to 4 V
CMOS/TTL input voltage (ENO, EN1, SEL0, SEL1)
0.5 V to 4 V
LVDS receiver input voltage (IN+, IN)
0.7 V to 4.3 V
LVDS driver output voltage (OUT+, OUT)
0.5 V to 4 V
LVDS output short circuit current
Continuous
Junction temperature
150°C
Storage temperature range
65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds
260°C
Continuous power dissipation
See Dissipation Rating Table
Electrostatic discharge
Human body model(3)
IN+, IN, OUT+, OUT,and GND
±8 kV
All pins
±2 kV
Charged-device mode(4)
All pins
±500 kV

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values, except differential I/O bus voltages, are with respect to network ground terminals.
(3) Tested in accordance with JEDEC Standard 22, Test Method A114-A.
(4) Tested in accordance with JEDEC Standard 22, Test Method C101.


Description

The SN65LVCP22 is a 2x2 crosspoint switch providing greater than 1000 Mbps operation for each path. The dual channels incorporate wide common-mode (0 V to 4 V)
receivers, allowing for the receipt of LVDS, LVPECL, and CML signals. The dual outputs are LVDS drivers to provide low-power, low-EMI, high-speed operation. The SN65LVCP22 provides a single device supporting 2: 1 buffering (repeating), 1:2 splitting, 2:1 multiplexing, 2x2 switching, and LVPECL/CML to LVDS level translation on each channel. The flexible operation of the SN65LVCP22 provides a single device to support the redundant serial bus transmission needs (working and protection switching cards) of faulttolerant switch systems found in optical networking, wireless infrastructure, and data communications systems. TI offers additional gigibit
repeater/translator and crosspoint products in the SN65LVDS100 and SN65LVDS122.

The SN65LVCP22 uses a fully differential data path to ensure low-noise generation, fast switching times, low pulse width distortion, and low jitter. Output jitter is less
than 20 ps (typ), and 50 ps (max), to provide an eye that is at least 95 % open at 1000 Mbps. Output channel-tochannel skew is less than 10 ps (typ) and 20 ps (max) to ensure accurate alignment of outputs in all applications. Both SOIC and TSSOP package options of SN65LVCP22 are available to allow easy upgrade for existing solutions, and board area savings where space is critical.
