Product Details

Description

Features:

• Members of the Texas Instruments Widebus^TM Family
• State-of-the-Art EPIC-II B^TM BiCMOS Design Significantly Reduces Power Dissipation
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
• Typical V_OLP (Output Ground Bounce) < 1 V at V_CC = 5 V, T_A = 25°C
• Distributed V_CC and GND Pin Configuration Minimizes High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• High-Drive Outputs (32-mA I_OH, 64-mA I_OL)
• Packaged in Plastic 300-mil Shrink Small-Outline and Thin Shrink Small-Outline Packages and 380-mil Fine-Pitch Ceramic Flat Packages Using 25-mil Center-to-Center Spacings

Pinout

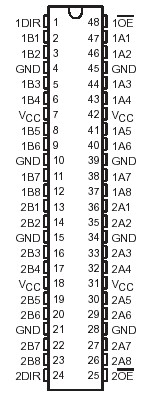

Connection Diagram

Specifications

Supply voltage range, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, V_I(except I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage applied to any output in the high state or power-off state, V_O . . . . . . . . . .0.5 V to 5.5 V
Current into any output in the low state, I_O: SN54ABT245 . . . . . . . . . . . . .. . . . . . . . . . . . .. . .96 mA
                                                                       SN54ABT245A . . . . . . . . . . . . . . . . . . . . . . . .. 128 mA
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .. 18 mA
Output clamp current, I_OK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2): DGG package . . . . . . . .. . .0.8 W
                                                                                                         DL package . . . .. . . . . . .0.85 W
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .65°C to 150°C

Description

The 4ABT16245 is a 16-bit (dual-octal) noninverting 3-state transceiver designed for synchronous two-way communication between data buses. The control function implementation minimizes external timing requirements.

This 4ABT16245 device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus depending upon the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state of 4ABT16245 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN74ABT16245 is available in TI's shrink small-outline package (DL), which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.The SN54ABT16245 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT16245 is characterized for operation from 40°C to 85°C.
