SN74ABT16540

Features: • Members of the Texas Instruments WidebusTM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17• Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA =...

product image

SN74ABT16540 Picture
See larger image
SeekIC No. : 004497720 Detail

SN74ABT16540: Features: • Members of the Texas Instruments WidebusTM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Latch-Up Performance Exceeds 500 ...

SN74ABT16540 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16540
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Members of the Texas Instruments WidebusTM Family
• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
• Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
• Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• High-Drive Outputs (32-mA IOH, 64-mA IOL)
• Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings




Pinout

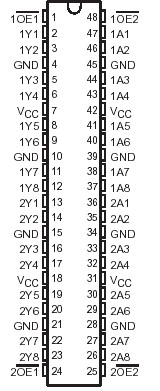

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high state or power-off state, VO .  .  . 0.5 V to 5.5 V
Current into any output in the low state, IO: SN54ABT16540 . . . . . . . . . . . . . . . . . . . . .. . .96 mA
                                                                       SN74ABT16540 . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2): DGG package  . . . .. . . .0.85 W
                                                                                                         DL package  . . . . . . . . . .1.2 W
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .    . . . . . . . .65°C to 150°C


Description

These SN74ABT16540 16-bit buffers and bus drivers provide a high-performance bus interface for wide data paths.

The 3-state control gate of SN74ABT16540 is a 2-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all corresponding outputs are in the high-impedance state.

To ensure the high-impedance state of SN74ABT16540 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN74ABT16540 is available in TI's shrink small-outline package (DL), which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.

The SN54ABT16540 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT16540 is characterized for operation from 40°C to 85°C.
