Product Details

Description



Features:

` Members of the Texas Instruments WidebusE Family
` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
` Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB Layout
` High-Drive Outputs (32-mA IOH, 64-mA IOL)
` Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages, and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Pinout

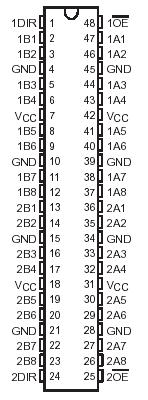

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1) . . . . . . . . . . . . . . .. .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO .. . 0.5 V to 5.5 V
Current into any output in the low state, IO:SN54ABT16640 . . . . . . . . . . . . . . . . . . .96 mA
                                                                       SN74ABT16640 . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .  . . . . .18 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .  . . . . . .50 mA
Package thermal impedance, qJA (see Note 2): DGG package . . . . . . . . . . . . . . . . .89°C/W
                                                                           DL package . . . . . .. . . . . . . . . . . . .94°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The 'ABT16640 are inverting 16-bit transceivers designed for asynchronous communication between data buses.

These  'ABT16640 devices can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (1DIR and 2DIR) inputs. The output-enable (1OE and 2OE) inputs can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state of 'ABT16640 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54ABT16640 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT16640 is characterized for operation from 40°C to 85°C.
