Product Details

Description



Features:

 State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
 ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
 Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
 Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
 High-Impedance State During Power Up and Power Down
 Designed to Facilitate Incident-Wave Switching for Line Impedances of 25 or Greater
 Distributed VCC and GND Pins Minimize Noise Generated by the Simultaneous Switching of Outputs
 Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
 Package Options Include Plastic Small-Outline (DW) Package, Ceramic Chip Carriers (FK), and Standard Plastic (NT) and Ceramic (JT) DIPs




Pinout

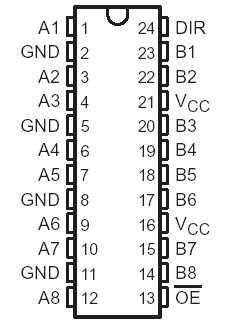

  Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1) . . . . . . . . . . . . . . .  . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state, VO  . . . . . . .0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO  . . . . . . . . . . . . .  . . . . . . . .0.5 V to VCC
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .50 mA
Current into any output in the low state, IO: SN74ABT25245 (A port)  . . . . . . . .. . . . . . . . . . .376 mA
                                                                       SN74ABT25245 (B port)  . . . . . . . . . . . . . . . .. . .128 mA
Operating free-air temperature range: SN54ABT25245 . . . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C
                                                              SN74ABT25245  . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Package thermal impedance, JA (see Note 2): DW package  . . . . . . . . . . .. . . . . . . . . . . . . . .81°C/W
                                                                          NT package  . . . . . . . . . . . . . . .  . . .. . . .  . . . .67°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C



Description

The 'ABT25245 are 25-W octal bus transceivers designed for asynchronous communication between data buses. They improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented transceivers.

These 'ABT25245 devices allow noninverted data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can disable the device so that both buses are effectively isolated. When OE is low, the device is active.

These 'ABT25245 transceivers are capable of sinking 188 mA of IOL current, which facilitates switching 25-W transmission lines on the incident wave. The distributed VCC and GND pins minimize switching noise for more-reliable system operation. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

When VCC is between 0 and 2.1 V, the 'ABT25245 device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking/current-sourcing capability of the driver.The SN54ABT25245 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT25245 is characterized for operation from 40°C to 85°C.
