SN74ABT5401

Features:

Output Ports Have Equivalent 25- Series Resistors, So No External Resistors Are Required
State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
Typical V_OLP (Output Ground Bounce) < 1 V at V_CC = 5 V, T_A = 25°C
Typical V_OLV (Output Undershoot) < 0.5 V at V_CC = 5 V, T_A = 25°C
Package Options Include Plastic Small-Outline (DW) Package, Ceramic Chip Carriers (FK), and DIPs (JT)

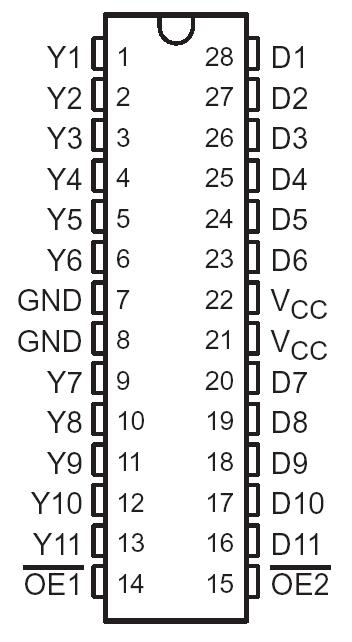

Pinout




Specifications

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, V_I (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O  . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Current into any output in the low state, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .30 mA
Input clamp current, IIK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .18 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .50 mA
Package thermal impedance, _JA (see Note 2): DW package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 65°C to 150°C
‡ Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.

            2. The package thermal impedance is calculated in accordance with EIA/JEDEC Std JESD51.


Description

These 4ABT5401 11-bit buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The 3-state control gate of 4ABT5401 is a 2-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all 11 outputs are in the high-impedance state. These devices provide inverted data.

The outputs of 4ABT5401, which are designed to source or sink up to 12 mA, include equivalent 25-W series resistors to reduce overshoot and undershoot.

To ensure the high-impedance state of 4ABT5401 during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54ABT5401 is characterized for operation over the full military temperature range of 55°C to 125°C.The SN74ABT5401 is characterized for operation from 40°C to 85°C.
