Product Details

Description

Features:

` Members of the Texas Instruments WidebusE Family
` A-Port Outputs Have Equivalent 25- Series Resistors, So No External Resistors Are Required
` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
` Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB Layout
` Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
` Latch-Up Performance Exceeds 500 mA Per JESD 17
` ESD Protection Exceeds 2000 V Per MIL-STD-833, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
` Package Options Include Plastic Thin Shrink Small-Outline (DGG), Thin Very Small-Outline (DGV), and Shrink Small-Outline (DL) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings

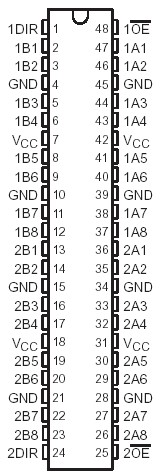

Pinout

Connection Diagram

Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1) . . . . . . . . . . . . . . .  . .. .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO . . . . . 0.5 V to 5.5 V
Current into any output in the low state, IO: SN54ABTH162245 (B port) . . . . . . . . . . . .96 mA
                                                                       SN74ABTH162245 (B port) .. . . . .  . . . . ..128 mA
                                                                        SN54/74ABTH162245 (A port). . .  . . . .. . .30 mA
Input clamp current, I_IK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .18 mA
Output clamp current, I_OK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, _JA (see Note 2): DGG package . .  . . . . . .. . . . . . . . . . ..89°C/W
                                                                           DGV package . . . .  . . . . . ..  . . . . . .. .93°C/W
                                                                           DL package . . . . . .  . . . . . .. . . . . . .. ..94°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .. . . . .65°C to 150°C

Description

The 'ABTH162245 devices are 16-bit noninverting 3-state transceivers designed for synchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

These 'ABTH162245 devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

The A-port outputs of 'ABTH162245 , which are designed to source or sink up to 12 mA, include equivalent 25- series resistors to reduce overshoot and undershoot.Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN54ABTH162245 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABTH162245 is characterized for operation from 40°C to 85°C.
