Features:

* Members of the Texas Instruments WidebusE Family
* B-Port Outputs Have Equivalent 25-W Series Resistors, So No External Resistors Are Required
* State-of-the-Art EPIC-IIBE BiCMOS Design Significantly Reduces Power Dissipation
* Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
* Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
* High-Impedance State During Power Up and Power Down
* Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
* Flow-Through Architecture Optimizes PCB Layout
* Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
* Package Options Include Plastic 300-mil Shrink Small-Outline (DL) Package and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Pinout

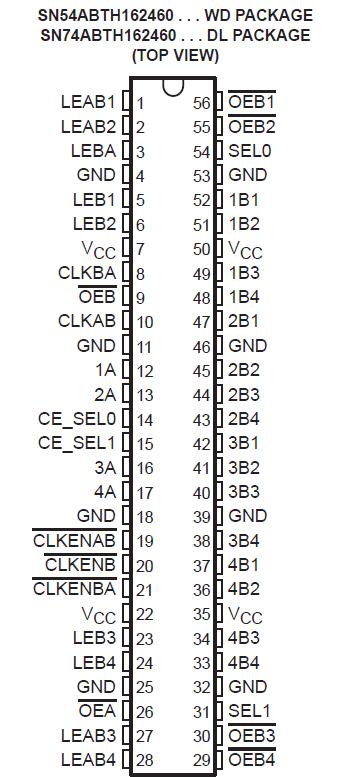

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . ... 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO . . . . . . . . . ...0.5 V to 5.5 V
Current into any output in the low state, IO: SN54ABTH162460 (A port) . . . . .. . . .......... . . . . 96 mA
SN74ABTH162460 (A port) . . . . . . . . . . . . . . . . . . . . . . . . .......................................................128 mA
B port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................................................. 30 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . 50 mA
Package thermal impedance, qJA (see Note 2): DL package . . . . . . . . . . . . . . . . . . . . .  ..... . 74 °C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 65°C to 150°C


Description

The 'ABTH162460 are 4-bit to 1-bit multiplexed registered transceivers used in applications where four separate data paths must be multiplexed onto or demultiplexed from a single
data path. Typical applications include multiplexing and/or demultiplexing of address and data information in microprocessor or bus-interface applications. This  'ABTH162460  device also is useful in memory-interleaving applications.

Five 4-bit I/O ports (1A4A, 1B14, 2B14, 3B14, and 4B14) are available for address and/or data transfer. The output-enable (OEB, OEB1OEB4, and OEA) inputs control the bus-transceiver functions. These   'ABTH162460  control signals also allow 4-bit or 16-bit control, depending on the OEB level.
