General Description
SN74ACT7882 General Description
A FIFO memory is a storage device that allows data to be written into and read from its array at independent data rates. The SN74ACT7882 is organized as 2048 bits deep × 18 bits wide. The SN74ACT7882 processes data at rates up to 67 MHz and access times of 11 ns in a bit-parallel format. Data outputs are noninverting with respect to the data inputs. Expansion is accomplished easily in both word width and word depth.
The SN74ACT7882 has normal input-bus to output-bus asynchronous operation. The special enable circuitry adds the ability to synchronize independent reads and writes to their respective system clocks.
The SN74ACT7882 is characterized for operation from 0°C to 70°C.
SN74ACT7882 Maximum Ratings
Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to a disabled 3-state output . . . . . . . . . .0.5 V to 5.5 V
Package thermal impedance, qJA (see Note 1): FN package . . . . . . . . . 39°C/W
PN package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .. . . 62°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to a disabled 3-state output . . . . . . . . . .0.5 V to 5.5 V
Package thermal impedance, qJA (see Note 1): FN package . . . . . . . . . 39°C/W
PN package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .. . . 62°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
SN74ACT7882 Features
· Member of the Texas Instruments WidebusE Family
· Independent Asynchronous Inputs and Outputs
· Read and Write Operations Can Be Synchronized to Independent System Clocks
· Programmable Almost-Full/Almost-Empty Flag
· Pin-to-Pin Compatible With SN74ACT7881 and SN74ACT7811
· Input-Ready, Output-Ready, and Half-Full Flags
· Cascadable in Word Width and/or Word Depth (See Application Information)
· Fast Access Times of 11 ns With a 50-pF Load
· High Output Drive for Direct Bus Interface
· Package Options Include 68-Pin Plastic Leaded Chip Carriers (FN) or 80-Pin Shrink Quad Flat (PN) Package
· Independent Asynchronous Inputs and Outputs
· Read and Write Operations Can Be Synchronized to Independent System Clocks
· Programmable Almost-Full/Almost-Empty Flag
· Pin-to-Pin Compatible With SN74ACT7881 and SN74ACT7811
· Input-Ready, Output-Ready, and Half-Full Flags
· Cascadable in Word Width and/or Word Depth (See Application Information)
· Fast Access Times of 11 ns With a 50-pF Load
· High Output Drive for Direct Bus Interface
· Package Options Include 68-Pin Plastic Leaded Chip Carriers (FN) or 80-Pin Shrink Quad Flat (PN) Package

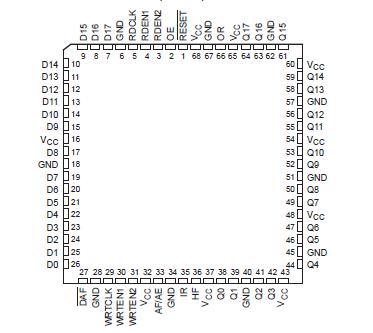

SN74ACT7882 Connection Diagram
