SN74AHC08

Features: 􀀀 EPICE (Enhanced-Performance Implanted CMOS) Process􀀀 Operating Range 2-V to 5.5-V VCC􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17􀀀 ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)&...

product image

SN74AHC08 Picture
See larger image
SeekIC No. : 004497957 Detail

SN74AHC08: Features: 􀀀 EPICE (Enhanced-Performance Implanted CMOS) Process􀀀 Operating Range 2-V to 5.5-V VCC􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17􀀀 ESD Protection...

SN74AHC08 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHC08
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀀀 EPICE (Enhanced-Performance Implanted CMOS) Process
􀀀 Operating Range 2-V to 5.5-V VCC
􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17
􀀀 ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
􀀀 Package Options Include Plastic
    Small-Outline (D), Shrink Small-Outline (DB), Thin Very Small-Outline (DGV), Thin Shrink Small-Outline (PW)
    and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic(J) DIPs


Pinout

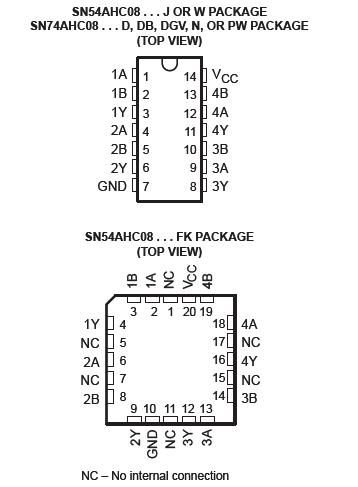

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±50 mA
Package thermal impedance, JA : D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                       DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                       DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                       N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
                                                       PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The 'AHC08 devices are quadruple 2-input positive-AND gates. These  'AHC08  devices perform the Boolean function Y=A • B or Y= A+B in positive logic. The SN54AHC08 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AHC08 is characterized for
operation from 40°C to 85°C.
