SN74AHCT16245

Features: ·Members of the Texas Instruments WidebusE Family·EPICTM (Enhanced-Performance Implanted CMOS) Process·Inputs Are TTL-Voltage Compatible·Distributed VCC and GND Pins Minimize High-Speed Switching Noise·Flow-Through Architecture Optimizes PCB Layout·Latch-Up Performance Exceeds 250 mA Per...

product image

SN74AHCT16245 Picture
See larger image
SeekIC No. : 004498020 Detail

SN74AHCT16245: Features: ·Members of the Texas Instruments WidebusE Family·EPICTM (Enhanced-Performance Implanted CMOS) Process·Inputs Are TTL-Voltage Compatible·Distributed VCC and GND Pins Minimize High-Speed Sw...

SN74AHCT16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHCT16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Members of the Texas Instruments WidebusE Family
·EPICTM (Enhanced-Performance Implanted CMOS) Process
·Inputs Are TTL-Voltage Compatible
·Distributed VCC and GND Pins Minimize High-Speed Switching Noise
·Flow-Through Architecture Optimizes PCB Layout
·Latch-Up Performance Exceeds 250 mA Per JESD 17
·Package Options Include Plastic Shrink Small-Outline (DL), Thin Shrink Small-Outline (DGG), and Thin Very Small-Outline (DGV) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Pinout

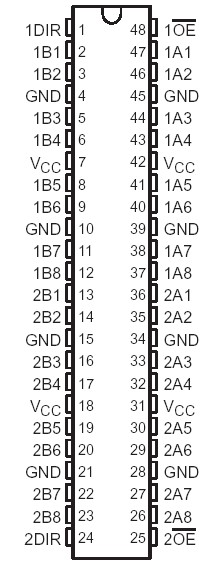

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . .. . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .. . . . . .28 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Package thermal impedance, JA (see Note 2):DGG package . . . . . . . . . . . . . . . . . . . . .70°C/W
                                                                         DGV package . . . . . . . . . . . . . . . . . . . .. .58°C/W
                                                                         DL package . . . . . . . . . . . . . . . . . . . . . . .63°C/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The 'AHCT16245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for synchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

These  'AHCT16245  devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state of  'AHCT16245  during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54AHCT16245 is characterized for operation over the full military temperature range of 55°C to 125°C.The SN74AHCT16245 is characterized for operation from 40°C to 85°C.
