SN74ALS174

Application· Buffer/Storage Registers· Shift Registers· Pattern GeneratorsPinout SpecificationsSupply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 VInput voltage, VI . . . . . . . . . . . . . . . . . . . . . . ....

product image

SN74ALS174 Picture
See larger image
SeekIC No. : 004498096 Detail

SN74ALS174: Application· Buffer/Storage Registers· Shift Registers· Pattern GeneratorsPinout SpecificationsSupply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

SN74ALS174 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALS174
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

· Buffer/Storage Registers
· Shift Registers
· Pattern Generators


Pinout

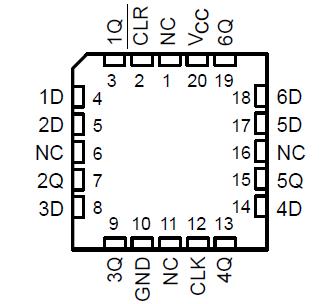

Connection Diagram   Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Package thermal impedance, JA (see Note 1): D package . . . . . . . . . . . . . . . . . . . . . . . . . . 73°C/W
                                                                        N package . . . . . . . . . . . . . . . . . . . . . . . . . . 67°C/W
                                                                        NS package . . . . . . . . . . . . . . . . . . . . . . . . . 64°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 65°C to 150°C


Description

These 'ALS175 and 'AS175B  positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic. All have a direct-clear (CLR) input. The 'ALS175 and 'AS175B feature complementary outputs from each flip-flop. Information at the data (D) inputs meeting the setup-time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either the high or low level, the D-input signal has no effect at the output.

These 'ALS175 and 'AS175B  circuits are fully compatible for use with most TTL circuits.
