SN74ALS2541

Features: • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• pnp Inputs Reduce dc Loading• Outputs Have 25-W Series Resistor So No External Resistors Are Required• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic (N) 300-mi...

product image

SN74ALS2541 Picture
See larger image
SeekIC No. : 004498121 Detail

SN74ALS2541: Features: • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• pnp Inputs Reduce dc Loading• Outputs Have 25-W Series Resistor So No External Resistors Are Require...

SN74ALS2541 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALS2541
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-State Outputs Drive Bus Lines or Buffer
  Memory Address Registers
• pnp Inputs Reduce dc Loading
• Outputs Have 25-W Series Resistor
  So No External Resistors Are Required
• Package Options Include Plastic
  Small-Outline (DW) Packages and Standard
  Plastic (N) 300-mil DIPs


Pinout

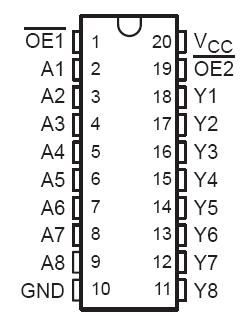

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

This SN74ALS2541 octal line driver/MOS driver is designed to drive the capacitive input characteristics of MOS devices and to have the performance of the popular SN74ALS240 series. At the same time, this device offers a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed-circuit-board layout.The 3-state output-control gate is a 2-input NOR. If either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state.

The SN74ALS2541 provides true data at the outputs.

The SN74ALS2541 is characterized for operation from 0°C to 70°C.
