Position: Home > Datasheet list > SN7 Series > Index S > SN74ALS32N
Electronica China

Purchase SN74ALS32N, In-stock SN74ALS32N From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

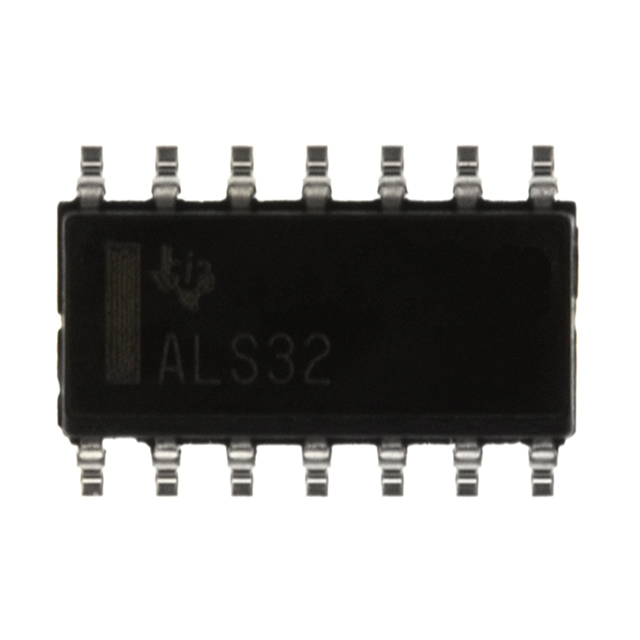

SN74ALS32N

SN7 Series Datasheet download

Five Points

Part Number: SN74ALS32N

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC QUAD 2-INPUT OR GATE 14-DIP

Price Break

1
25
100
250
500
1000
5000

Unit Price

.72000
.54000
.40500
.29880
.25200
.23940
.22950

Extended Price

0.72
13.50
40.50
74.70
126.00
239.40
1147.50

(All prices are in USD) Prices for reference only
Urgent Purchase

SN74ALS32N General Description

IC QUAD 2-INPUT OR GATE 14-DIP

SN74ALS32N Parameters

Technical/Catalog InformationSN74ALS32N
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-DIP (300 mil)
Logic TypeOR Gate
PackagingTube
Mounting TypeThrough Hole
Number of Inputs2
Current - Output High, Low400A, 8mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature0°C ~ 70°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number296; 4040049; N; 14, 16, 18, 20
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74ALS32N
SN74ALS32N
296 1495 5 ND
29614955ND
296-1495-5

SN74ALS32N datasheet

SN7000
PDF/DataSheet Download

  • Datasheet: SN7000
  • File Size: 81454 KB
  • Manufacturer: SIEMENS [Siemens Semiconductor Group]
  • Click here to Download
