SN74ALS857

Features: • Select True or Complementary Data• Perform AND/NAND (Masking) of A or B Operand• Cascadable to Expand Number of Operands• Detect Zeros on A or B Operands• 3-State Outputs Interface Directly With System Bus• Package Options Include Plastic Small-Outli...

product image

SN74ALS857 Picture
See larger image
SeekIC No. : 004498196 Detail

SN74ALS857: Features: • Select True or Complementary Data• Perform AND/NAND (Masking) of A or B Operand• Cascadable to Expand Number of Operands• Detect Zeros on A or B Operands• 3...

SN74ALS857 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALS857
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Select True or Complementary Data
• Perform AND/NAND (Masking) of A or B Operand
• Cascadable to Expand Number of Operands
• Detect Zeros on A or B Operands
• 3-State Outputs Interface Directly With System Bus
• Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (NT) and Ceramic (JT) 300-mil DIPs


Pinout

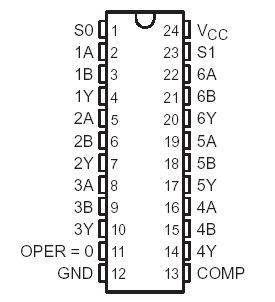

Connection Diagram


Specifications

Supply voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .7 V
Input voltage, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Operating free-air temperature range, TA:SN54ALS857  . . . . . . . . 55°C to 125°C
                                                                   SN74ALS857 . . . . . . . .  . . . 0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 65°C to 150°C


Description

The SN54ALS857 and SN74ALS857 are hextuple 2-line to 1-line multiplexers with 3-state outputs. The SN54ALS857 and SN74ALS857 devices can provide either true (COMP low) or inverted (COMP high) data at the Y outputs. In addition, the 4ALS857 perform the logical AND function (A • B) and the clear function as well. The four modes of operation are:

• Select A-data inputs

• Select B-data inputs

• AND A inputs with B inputs

• Clear

In either of the first two modes, OPER = 0 is high if all the selected A or B inputs are low. The six Y outputs and the OPER = 0 output are all 3-state and rated at 12-mA and 24-mA IOL for the SN54ALS857 and SN74ALS857, respectively. All outputs can be placed in the high-impedance state by applying a high level to the COMP, S0, and S1 inputs simultaneously.

In the SN54ALS857 and SN74ALS857 series, the SN54ALS857 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS857 is characterized for operation from 0°C to 70°C.
