SN74ALVC164245

Features: Member of the Texas Instruments Widebus FamilyMax tpd of 5.8 ns at 3.3 V±24-mA Output Drive at 3.3 VLatch-Up Performance Exceeds 250 mA Per JESD 17ApplicationAudiowww.ti.com/audioAutomotive www.ti.com/automotiveBroadband www.ti.com/broadbandDigital Control www.ti.com/digitalcontr...

product image

SN74ALVC164245 Picture
See larger image
SeekIC No. : 004498233 Detail

SN74ALVC164245: Features: Member of the Texas Instruments Widebus FamilyMax tpd of 5.8 ns at 3.3 V±24-mA Output Drive at 3.3 VLatch-Up Performance Exceeds 250 mA Per JESD 17ApplicationAudiowww.ti.com/audioA...

SN74ALVC164245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVC164245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Member of the Texas Instruments Widebus Family
 Max tpd of 5.8 ns at 3.3 V
 ±24-mA Output Drive at 3.3 V
 Latch-Up Performance Exceeds 250 mA Per JESD 17


Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless


Pinout

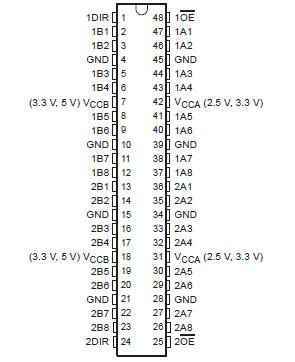

Connection Diagram


Specifications

Supply voltage range: VCCA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
                                    VCCB . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . −0.5 V to 6 V
Input voltage range, VI: Except I/O ports (see Note 1). .  . . . .  . . . . −0.5 V to 6 V
I/O port A (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . .. . −0.5 V to VCCA + 0.5 V
I/O port B (see Note 1) . . . . . . .  . . . . . . . . . . . . . . . . . . . . −0.5 V to VCCB + 0.5 V
Input clamp current, IIK (VI < 0) .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
Output clamp current, IOK (VO < 0) . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . −50 mA
Continuous output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through each VCC or GND . . . . . . . . . . . . . . .. . . . . . ±100 mA
Package thermal impedance, JA (see Note 3): DGG package . . .. . . . . . . 70°C/W
                                                                           DL package . . . .. . . . . . . 63°C/W
                                                                           GQL/ZQL package  .  . . . . 42°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. This value is limited to 6 V maximum.
             2. This value is limited to 4.6 V maximum.
             3. The package thermal impedance is calculated in accordance with JESD 51-7.


Description

This SN74ALVC164245 16-bit (dual-octal) noninverting bus transceiver contains two separate supply rails. B port has VCCB, which is set to operate at 3.3 V and 5 V. A port has VCCA, which is set to operate at 2.5 V and 3.3 V. This allows for translation from a 2.5-V to a 3.3-V environment, and vice versa, or from a 3.3-V to a 5-V environment, and vice versa.

The SN74ALVC164245 is designed for asynchronous communication between data buses.
