SN74ALVCH16269

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, V_I: Except I/O ports (see Note 1) . . . . . . . . . . . . . . . . .. . . . . . . 0.5 V to 4.6 V
                                       I/O ports (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . 0.5 V to V_CC + 0.5 V
Output voltage range, V_O (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . .  . . . 0.5 V to V_CC + 0.5 V
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 50 mA
Continuous output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . ±50 mA
Continuous current through each V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . ±100 mA
Package thermal impedance, _JA (see Note 3): DGG package . . . . . . . . . . . . . . . . . . . . . .  . . 81°C/W
                                                                          DGV package . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                                          DL package . . . . . . . . . . . . . . . . . . . . . . . .. . . 74°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The package thermal impedance is calculated in accordance with JESD 51.

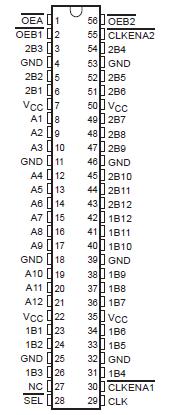

This 12-bit to 24-bit registered bus exchanger is designed for 1.65-V to 3.6-V V_CC operation.

The SN74ALVCH16269 is used in applications in which two separate ports must be multiplexed onto, or demultiplexed from, a single port. The device is particularly suitable as an interface between synchronous DRAMs and high-speed microprocessors.

Data is stored in the internal B-port registers on the low-to-high transition of the clock (CLK) input when the appropriate clock-enable (CLKENA) inputs are low. Proper control of these inputs of SN74ALVCH16269 allows two sequential 12-bit words to be presented as a 24-bit word on the B port. For data transfer in the B-to-A direction, a single storage register is provided. The select (SEL) line selects 1B or 2B data for the A outputs. The register on the A output permits the fastest possible data transfer, extending the period during which the data is valid on the bus. The control terminals are registered so that all transactions are synchronous with CLK. Data flow is controlled by the active-low output enables (OEA, OEB1, OEB2).

To ensure the high-impedance state of SN74ALVCH16269 during power up or power down, a clock pulse should be applied as soon as possible, and OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Due to OE being routed through a register, the active state of the outputs cannot be determined before the arrival of the first clock pulse.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.The SN74ALVCH16269 is characterized for operation from 40°C to 85°C.
