SN74ALVCH162836

Features: Member of the Texas Instruments Widebus(TM) FamilyEPIC(TM) (Enhanced-Performance Implanted CMOS) Submicron ProcessOutput Port Has Equivalent 26-W Series Resistors, So No External Resistors Are RequiredDesigned to Comply With JEDEC 168-Pin and 200-Pin SDRAM Buffered DIMM SpecificationESD ...

product image

SN74ALVCH162836 Picture
See larger image
SeekIC No. : 004498281 Detail

SN74ALVCH162836: Features: Member of the Texas Instruments Widebus(TM) FamilyEPIC(TM) (Enhanced-Performance Implanted CMOS) Submicron ProcessOutput Port Has Equivalent 26-W Series Resistors, So No External Resistors...

SN74ALVCH162836 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVCH162836
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Member of the Texas Instruments
   Widebus(TM) Family
EPIC(TM) (Enhanced-Performance Implanted
   CMOS) Submicron Process
Output Port Has Equivalent 26-W  Series
   Resistors, So No External Resistors Are
   Required
Designed to Comply With JEDEC 168-Pin
   and 200-Pin SDRAM Buffered DIMM
   Specification
ESD Protection Exceeds 2000 V Per
   MIL-STD-883, Method 3015; Exceeds 200 V
   Using Machine Model (C = 200 pF, R = 0)
Latch-Up Performance Exceeds 250 mA Per
   JESD 17
Bus Hold on Data Inputs Eliminates the
   Need for External Pullup/Pulldown
   Resistors
Package Options Include Plastic Shrink
   Small-Outline (DL), Thin Shrink
   Small-Outline (DGG), and Thin Very
   Small-Outline (DGV) Packages

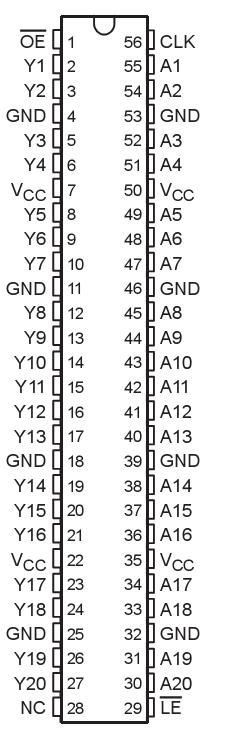

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . .. . 0.5 V to 4.6 V
Input voltage range, VI  (see Note 1)  . . . . . . . .. . . . . . . . . . . . . . . . . . . .  . . . . 0.5 V to 4.6 V
Output voltage range, VO  (see Notes 1 and 2)  . .. . . . . . . . . . . . . . . . . 0.5 V to VCC  + 0.5 V
Input clamp current, IIK   (VI  < 0)  . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  50 mA
Output clamp current, IOK  (VO  < 0)  . . . . . . . . . . . ..... . . . . . . . . . . . . . . . . . . . . . . . .  50 mA
Continuous output current, IO   . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .  . . . . . . ±50 mA
Continuous current through each VCC  or GND  . . . . . . . .  . . . . . . . . . . . . . . . . . . . . .  ±100 mA

Package thermal impedance, 0JA (see Note 3): DGG package  . . . . .. . ....... .. . . .. ... . . 81°C/W
                                                                           DGV package . . . .. . . . . . . .. ........ .. . . 86°C/W
                                                                           DL package . . . . . . . ...... . . . . ....... . . . 74°C/W
Storage temperature range, Tstg   . . . . . . . . . . . . . .  . . . . ......................... . . . . -65  to 150



Description

This SN74ALVCH162836 20-bit universal bus driver is designed for 1.65-V to 3.6-V VCC  operation.

Data flow from A to Y is controlled by the output-enable (OE) input. The SN74ALVCH162836 device operates in the transparent mode when the latch-enable (LE) input is low. When LE is high, the A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state.

The output port of SN74ALVCH162836 includes equivalent 26-W  series resistors to reduce overshoot and undershoot.

To ensure the high-impedance state of SN74ALVCH162836 during power up or power down, OE should be tied to VCC  through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.The SN74ALVCH162836 is characterized for operation from 40°C to 85°C.
