SN74ALVCH16863

Features: Member of the Texas Instruments WidebusFamily EPIC(Enhanced-Performance ImplantedCMOS) Submicron Process ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0) Latch-Up Performance Exceeds 250 mA Per JESD 17 Bus Hold on Data Inp...

product image

SN74ALVCH16863 Picture
See larger image
SeekIC No. : 004498308 Detail

SN74ALVCH16863: Features: Member of the Texas Instruments WidebusFamily EPIC(Enhanced-Performance ImplantedCMOS) Submicron Process ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Ma...

SN74ALVCH16863 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVCH16863
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Member of the Texas Instruments
  Widebus Family
EPIC (Enhanced-Performance Implanted
  CMOS) Submicron Process
ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)
Latch-Up Performance Exceeds 250 mA Per
  JESD 17
Bus Hold on Data Inputs Eliminates the
   Need for External Pullup/Pulldown
   Resistors
Package Options Include Plastic 300-mil
   Shrink Small-Outline (DL) and Thin Shrink
   Small-Outline (DGG) Packages


Pinout

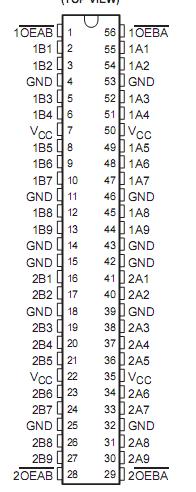

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, V:Except I/O ports (see Note 1)  . . . . . . . . . . . .  . . 0.5 V to 4.6 V
                                  I/O ports (see Notes 1 and 2)  . . . . . . . . . . .  . 0.5 V to V cc+ 0.5 V
Output voltage range, V(see Notes 1 and 2)  . . . . . . . . . . . . . . .  . . . . .0.5 V to V+ 0.5 V
 Input clamp current, IIK. . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . .  . . . . . (VI < 0) 50 mA
Output clamp current, . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . . I.OK (VO< 0) 50 mA
Continuous output current,  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IO±50 mA
Continuous current through each VCC or GND . . . . . . . . .. . . . . . . . . . . . .  . . . . .±100 mA

Package thermal impedance, JA (see Note 3):DGG package. . . . . .. . . . . . .. . ...81°C/W°
                                                                            DL package. . . . . . . . . . . . . . .. .74°C/W
Storage temperature range,  . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . .TSTG 65°C to 150°C



Description

This 18-bit bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVCH16863 is an 18-bit noninverting transceiver designed for synchronous communication between data buses. The control-function implementation minimizes external timing requirements.

The SN74ALVCH16863 can be used as two 9-bit transceivers or one 18-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the output-enable (OEAB   or OEBA ) inputs.

To ensure the high-impedance state during power up or power down, OE  should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN74ALVCH16863 is characterized for operation from 40°C to 85°C.
