Features: • High Capacitive Drive Capability• 'ALS1804A Has Typical Delay Time of 4 ns (CL = 50 pF) and Typical Power Dissipation of 3.4 mW per Gate• 'AS1804 Has Typical Delay Time of 2.6 ns (CL = 50 pF) and Typical Power Dissipation of Less than 9 mW per Gate• Center VCC a...
SN74AS1804: Features: • High Capacitive Drive Capability• 'ALS1804A Has Typical Delay Time of 4 ns (CL = 50 pF) and Typical Power Dissipation of 3.4 mW per Gate• 'AS1804 Has Typical Delay Time...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

These SN74AS1804 devices contain six independent 2-input NAND drivers. They perform the Boolean functions Y = A•B or Y = A+B in positive logic.

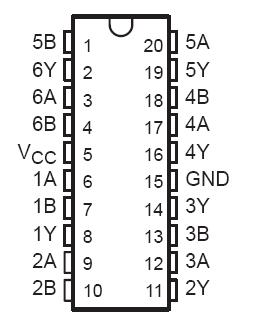

The SN74AS1804 center pin configuration used in the 'ALS1804A and 'AS1804 provides a reduction of lead inductance when compared to the 'ALS804A and 'AS804B. This reduction of lead inductance will minimize noise generated onto either the VCC or GND bus. This reduction is significant in high current switching applications.
The SN54ALS1804A and SN54AS1804 are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS1804A and SN74AS1804 are characterized for operation from 0°C to 70°C.
