SN74AS230A

Features: • True and Complementary Outputs• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• High Capacitive-Drive Capability• Current-Sinking Capability Up to 64 mA• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic (...

product image

SN74AS230A Picture
See larger image
SeekIC No. : 004498387 Detail

SN74AS230A: Features: • True and Complementary Outputs• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• High Capacitive-Drive Capability• Current-Sinking Capability U...

SN74AS230A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AS230A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• True and Complementary Outputs
• 3-State Outputs Drive Bus Lines or Buffer
  Memory Address Registers
• High Capacitive-Drive Capability
• Current-Sinking Capability Up to 64 mA
• Package Options Include Plastic
  Small-Outline (DW) Packages and Standard
  Plastic (N) 300-mil DIPs


Pinout

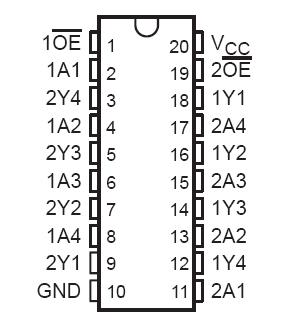

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

This SN74AS230A octal buffer/driver is designed specifically to improve the performance of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. When used together, multiples of this device provide the choice of selected combinations of inverting and noninverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs.

The SN74AS230A is characterized for operation from 0°C to 70°C.
