SN74AS374

Features: · D-Type Flip-Flops in a Single Package With 3-State Bus Driving True Outputs· Full Parallel Access for Loading· Buffered Control Inputs· Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPsPinoutSpecif...

product image

SN74AS374 Picture
See larger image
SeekIC No. : 004498411 Detail

SN74AS374: Features: · D-Type Flip-Flops in a Single Package With 3-State Bus Driving True Outputs· Full Parallel Access for Loading· Buffered Control Inputs· Package Options Include Plastic Small-Outline ...

SN74AS374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AS374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· D-Type Flip-Flops in a Single Package With
  3-State Bus Driving True Outputs
· Full Parallel Access for Loading
· Buffered Control Inputs
· Package Options Include Plastic
  Small-Outline (DW) Packages, Ceramic
  Chip Carriers (FK), and Standard Plastic (N)
  and Ceramic (J) DIPs


Pinout

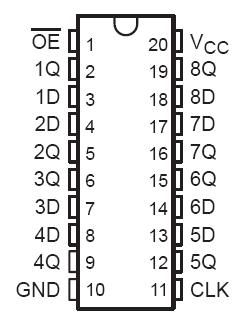

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Package thermal impedance, qJA (see Note 1): DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
NOTE 1: The package thermal impedance is calculated in accordance with JESD 51.


Description

These SN74AS374 octal D-type edge-triggered flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relativelylow-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

On the SN74AS374 positive transition of the clock (CLK) input, the Q outputs are set to the logic levels set up at the data (D) inputs.

A SN74AS374 buffered output-enable (OE) input places the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In  the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without interface or pullup components.

SN74AS374 OE does not affect internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
