SN74AS756

Features: • Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers• Eliminate the Need for 3-State Overlap Protection• pnp Inputs Reduce dc Loading• Open-Collector Versions of 4AS240A and 4AS241• Package Options Include Plastic Small-Outline (DW) Pa...

product image

SN74AS756 Picture
See larger image
SeekIC No. : 004498429 Detail

SN74AS756: Features: • Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers• Eliminate the Need for 3-State Overlap Protection• pnp Inputs Reduce dc Loading• Open-C...

SN74AS756 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AS756
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Open-Collector Outputs Drive Bus Lines or
  Buffer Memory Address Registers
• Eliminate the Need for 3-State Overlap Protection
• pnp Inputs Reduce dc Loading
• Open-Collector Versions of 4AS240A and 4AS241
• Package Options Include Plastic
  Small-Outline (DW) Packages, Ceramic
  Chip Carriers (FK), and Standard Plastic (N)
  and Ceramic (J) 300-mil DIPs


Pinout

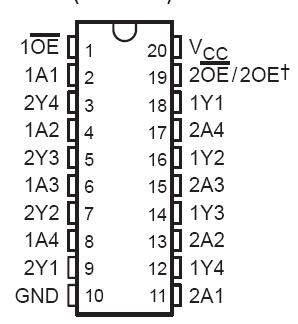

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Off-state output voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Operating free-air temperature range, TA:SN54AS756 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
SN74AS756, SN74AS757 . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

These  SN74AS756 and SN74AS757  octal buffers and line drivers are designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters by eliminating the need for 3-state overlap protection. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs. These devices feature high fan-out and improved fan-in.

The SN54AS756 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AS756 and SN74AS757 are characterized for operation from 0°C to 70°C.
