SN74AS824

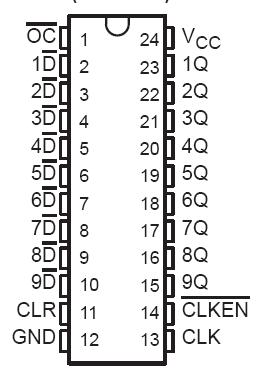

These SN74AS' family  9-bit flip-flops feature 3-state outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. SN74AS' family  are particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers, parity bus interfacing, and working registers.

With the clock enable (CLKEN) low, the nine D-type edge-triggered flip-flops enter data on the low-to-high transitions of the clock. Taking CLKEN high will disable the clock buffer, thus latching the outputs. The SN74AS' family  has noninverting D inputs and the 'AS824 has inverting D inputs. Taking the CLR input low causes the nine Q outputs to go low independently of the clock.

A buffered output-control input OC can be used to place the nine outputs in either normal logic state (high or low level) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive the bus lines in a bus-organized system without need for interface or pullup components. The output control does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. The SN54AS' family is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AS' family is characterized for operation from 0°C to 70°C.
