SN74AUC1G19YEPR

Manufacturer: Texas Instruments
Circuit: 1 x 1:2
Independent Circuits: 1
Voltage Supply Source: Single Supply
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Type: Decoder/Demultiplexer
Series: 74AUC
Current - Output High, Low: 9mA, 9mA
Voltage - Supply: 0.8 V ~ 2.7 V
Packaging: Tape & Reel (TR)
Package / Case: 6-XFBGA, DSBGA
Supplier Device Package: 6-DSBGA, 6-WCSP (1.4x0.9)


Features:

` Available in the Texas Instruments
  NanoStar` and NanoFree` Package
` Optimized for 1.8-V Operation and is 3.6-V
  I/O Tolerant to Support Mixed-Mode Signal Operation
` Ioff Supports Partial-Power-Down Mode Operation
` Sub-1-V Operable
` ±8-mA Output Drive at 1.8 V VCC
` Max tpd of 3 ns at 1.8 V VCC
` Low Power Consumption, 10-A Max ICC
` Latch-Up Performance Exceeds 100 mA Per
  JESD 78, Class II
` ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)
− 1000-V Charged-Device Model (C101)

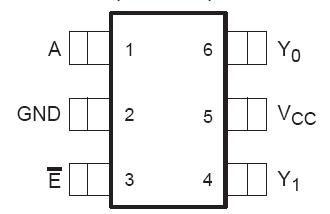

Pinout




Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 3.6 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 3.6 V
Voltage range applied to any output in the high-impedance or power-off state, VO
(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 3.6 V
Voltage range applied to any output in the high or low state, VO
(see Note 1 and Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, I_IK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−50 mA
Output clamp current, I_OK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−50 mA
Continuous output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous current through V_CC or G_ND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±100 mA
Package thermal impedance, _JA (see Note 3): DBV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  206°C/W
DCK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252°C/W
DRL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142°C/W
YEP/YZP package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  123°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. The value of VCC is provided in the recommended operatng conditions table.
3. The package thermal impedance is calculated in accordance with JESD 51-7.


Description

This SN74AUC1G19 1-of-2 decoder/demultiplexer is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.

The SN74AUC1G19 is a 1-of-2 decoder/demultiplexer. This SN74AUC1G19 device buffers the data on input A and passes it to the outputs Y0 (true) and Y1 (complement) when the enable (E) input signal is low.NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Parameters:

Technical/Catalog Information	SN74AUC1G19YEPR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Circuit	1 x 1:2
Independent Circuits	1
Mounting Type	Surface Mount
Current - Output High, Low	9mA, 9mA
Package / Case	6-DSBGA
Packaging	Tape & Reel (TR)
Type	Decoder/Demultiplexer
Voltage Supply Source	Single Supply
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	0.8 V ~ 2.7 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74AUC1G19YEPR SN74AUC1G19YEPR
