SN74AVCBH164245

Supply voltage range, V_CCA and V_CCB . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
Input voltage range, V_I (see Note 1): I/O ports (A port) . . . . . . . . . −0.5 V to 4.6 V
I/O ports (B port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
Control inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . −0.5 V to 4.6 V
Voltage range applied to any output in the high-impedance or power-off state, V_O
(see Note 1): (A port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.6 V
(B port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . −0.5 V to 4.6 V
Voltage range applied to any output in the high or low state, V_O
(see Notes 1 and 2): (A port) . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to V_CCA + 0.5 V
(B port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to V_CCB + 0.5 V
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .. . −50 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . −50 mA
Continuous output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ... . . . ±50 mA
Continuous current through V_CCA, V_CCB, or GND . . . . . . . . . . . . . . . . . ..   . ±100 mA
Package thermal impedance, _JA (see Note 3): DGG package . . . . . .. .. . . . .  70/W
DGV package . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . . . . . . 58/W
GQL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . .  . . . . . 28/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . −65 to 150

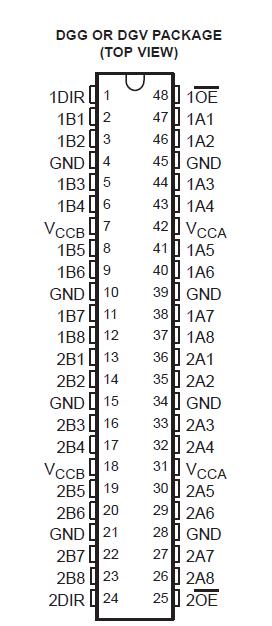

This SN74AVCBH164245 16-bit (dual-octal) noninverting bus transceiver uses two separate configurable power-supply rails. The A-port is designed to track V_CCA. V_CCA accepts any supply voltage from 1.4 V to 3.6 V. The B-port is designed to track V_CCB. V_CCB accepts any supply voltage from 1.4 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.

The SN74AVCBH164245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the outputs so the buses are effectively isolated.

The SN74AVCBH164245 is designed so that the control pins (1DIR, 2DIR, 1OE, and 2OE) are supplied by V_CCB.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. To ensure the high-impedance state of SN74AVCBH164245 during power up or power down, OE should be tied to VCCB through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

This SN74AVCBH164245 device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. If either VCC input is at GND, both ports are in the high-impedance state.
