SN74BCT29822

Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)• 3-State Buffer-Type Outputs Drive Bus Lines Directly• Package Options Include Plastic S...

product image

SN74BCT29822 Picture
See larger image
SeekIC No. : 004498599 Detail

SN74BCT29822: Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)&...

SN74BCT29822 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT29822
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• 3-State Buffer-Type Outputs Drive Bus Lines Directly
• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)

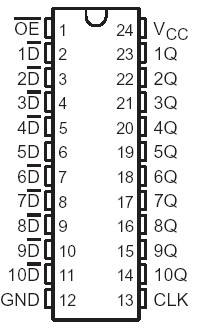

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state, VO . . . . . . . .  . .0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Input clamp current, IIK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .30 mA
Current into any output in the low state ,IO . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .   96 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .  . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. .65°C to 150°C


Description

This SN74BCT29822 10-bit bus-interface flip-flop features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers with parity, and working registers.

The SN74BCT29822 ten flip-flops are edge-triggered D-type flip-flops. On the positive transition of the clock, the Q outputs will be complementary to the data (D) inputs.

A SN74BCT29822 buffered output-enable (OE) input can be used to place the ten outputs in either a normal logic state (high or low) or a high-impedance state. In the high impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.

The SN74BCT29822 output enable (OE) does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.


The SN74BCT29822 is characterized for operation from 0°C to 70°C.
