SN74CBT16209

Features: 5- Switch Connection Between Two PortsTTL-Compatible Input and Output LevelsPackage Options Include Plastic Thin Shrink Small-Outline (DGG), 300-mil Shrink Small-Outline (DL), and 380-mil Fine-Pitch Ceramic Flat (WD) PackagesPinoutSpecificationsSupply voltage range, VCC . . . . . . . . ....

product image

SN74CBT16209 Picture
See larger image
SeekIC No. : 004498674 Detail

SN74CBT16209: Features: 5- Switch Connection Between Two PortsTTL-Compatible Input and Output LevelsPackage Options Include Plastic Thin Shrink Small-Outline (DGG), 300-mil Shrink Small-Outline (DL), and 380-mil ...

SN74CBT16209 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT16209
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 5- Switch Connection Between Two Ports
 TTL-Compatible Input and Output Levels
 Package Options Include Plastic Thin Shrink Small-Outline (DGG), 300-mil Shrink Small-Outline (DL), and 380-mil Fine-Pitch Ceramic Flat (WD) Packages

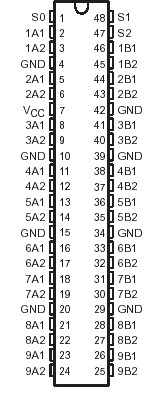

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2): DGG package  . .  . . . . .0.85 W
                                                                                                          DL package . . . . . . . . . .1.2 W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .65°C to 150°C


Description

The 'CBT16209 provide 18 bits of high-speed TTL-compatible bus switching or exchanging. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The SN74CBT16209 devices operate as an 18-bit bus switch or a 9-bit bus exchanger, which provides data exchanging between the four signal ports via the data-select (S0S2) terminals.

The SN54CBT16209 is characterized for operation from 55°C to 125°C. The SN74CBT16209 is characterized for operation from 40°C to 85°C.
