SN74CBT16211A

Features:

 5-Ω Switch Connection Between Two Ports
 TTL-Compatible Input Levels
Shrink Small-Outline (DL), Thin Shrink
Small-Outline (DGG), and Thin Very
Small-Outline (DGV) Packages


Application

The SN74CBT16211A provides 24 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allow sconnections to be made with minimal propagation delay.
The device operates as a dual 12-bit bus switch or single 24-bit bus switch. When 1OE is low, 1A is
connected to 1B. When 2OE is low, 2A is connected to 2B.
The SN74CBT16211A is characterized for operation from 40°C to 85°C.

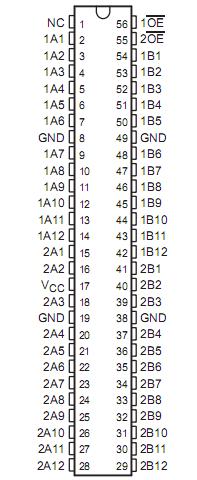

Pinout




Specifications

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51.


Description

The SN74CBT16211A provides 24 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
The SN74CBT16211A device operates as a dual 12-bit bus switch or single 24-bit bus switch. When 1OE is low, 1A is connected to 1B. When 2OE is low, 2A is connected to 2B.
The SN74CBT16211A is characterized for operation from 40°C to 85°C.
