SN74CBT16214

Features: *5-Ω Switch Connection Between Two Ports*TTL-Compatible Input Levels*Package Options Include Plastic Thin Shrink Small-Outline (DGG) and 300-mil Shrink Small-Outline (DL) PackagesPinoutSpecificationsSupply voltage range, VCC . . .. . .. . .. . .. . .. . . . . . . . . 0.5 V to 7 VIn...

product image

SN74CBT16214 Picture
See larger image
SeekIC No. : 004498684 Detail

SN74CBT16214: Features: *5-Ω Switch Connection Between Two Ports*TTL-Compatible Input Levels*Package Options Include Plastic Thin Shrink Small-Outline (DGG) and 300-mil Shrink Small-Outline (DL) PackagesPin...

SN74CBT16214 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT16214
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*5-Ω Switch Connection Between Two Ports
*TTL-Compatible Input Levels
*Package Options Include Plastic Thin
  Shrink Small-Outline (DGG) and 300-mil
  Shrink Small-Outline (DL) Packages


Pinout

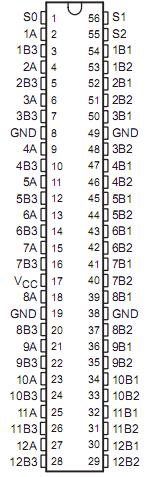

Connection Diagram




Specifications

Supply voltage range, VCC   . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1)   . . . . . . . . . . . . . . . . 0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Input clamp current, IIK (VI < 0)   . . . . . . . . . . . . . . . . . . .  . . . . .50 mA
Package thermal impedance, JA (see Note 2): DGG package . . .. .81°C
                                                                          DL package   . . .  . 74°C
Storage temperature range, Tstg  . . . . . . . . . . .  . . . . 65°C to 150°C


Description

      The SN74CBT16214 provides 12bits of high-speed TTL-compatible bus switching between three separate ports. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

      The device operates as a 12-bit bus-select switch via the data-select (S0S2) terminals.

      The SN74CBT16214 is characterized  for operation from 40°C to 85°C.
