SN74CBT16244

Features: *Members of Texas Instruments' Widebus™Family*Standard '16244-Type Pinout*5-Ω Switch Connection Between Two Ports*TTL-Compatible Input LevelsApplicationAudio Automotive Broadband Digital Control Military Optical NetworkingSecurity Telephony Video & Imaging Wireles...

product image

SN74CBT16244 Picture
See larger image
SeekIC No. : 004498689 Detail

SN74CBT16244: Features: *Members of Texas Instruments' Widebus™Family*Standard '16244-Type Pinout*5-Ω Switch Connection Between Two Ports*TTL-Compatible Input LevelsApplicationAudio Automotive...

SN74CBT16244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT16244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Members of Texas Instruments' Widebus™Family
*Standard '16244-Type Pinout
*5-Ω Switch Connection Between Two Ports
*TTL-Compatible Input Levels


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless




Pinout

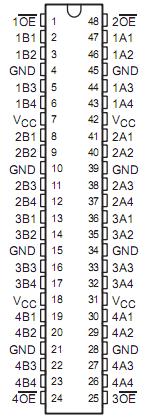

Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . .. . . . .. . . . .. . . . .. . .  . . 0.5 V to 7 V
Input voltage range, VI (see Note 1)   . .. . . . .. . . . .. . . . .. . .0.5 V to 7 V
Continuous channel current   . . . . . . . . . . . . . .. . . . .. . . . .. . . . .. . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . .. . . . .. . . . .. . . . .. . . . ..  . .50 mA
Package thermal impedance, JA (see Note 2): DGG package  . . .. 70°C/W
                                                                          DGV package. . . . ..58°C/W
                                                                          DL package  . . . . .. 63°C/W
Storage temperature range, Tstg  . . . . . . . . . .  . . . . . . . 65°C to 150°C


Description

      The SN74CBT16244 devices provide 16 bits of high-speed TTL-compatible bus switching in a standard '16244 device pinout. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

      These devices of the SN74CBT16244 are organized as four 4-bit ow-impedance switches with separate output-enable (OE) inputs. When OE is low, the switch is on, and data can flow from port A to port B, or vice versa. When OE is high, the switch is open, and the high-impedance state exists between the two ports.
