SN74CBT16292

Features: *4-W Switch Connection Between Two Ports*TTL-Compatible Control Input Levels*Make-Before-Break Feature*Internal 500-W Pulldown Resistors to Ground*Latch-Up Performance Exceeds 250 mA Per JESD 17*Package Options Include Plastic Thin Shrink Small-Outline (DGG), Thin Very Small-Outline (DGV...

product image

SN74CBT16292 Picture
See larger image
SeekIC No. : 004498692 Detail

SN74CBT16292: Features: *4-W Switch Connection Between Two Ports*TTL-Compatible Control Input Levels*Make-Before-Break Feature*Internal 500-W Pulldown Resistors to Ground*Latch-Up Performance Exceeds 250 mA Per J...

SN74CBT16292 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT16292
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 4-W Switch Connection Between Two Ports
* TTL-Compatible Control Input Levels
* Make-Before-Break Feature
* Internal 500-W Pulldown Resistors to
   Ground
* Latch-Up Performance Exceeds 250 mA Per
   JESD 17
* Package Options Include Plastic Thin
   Shrink Small-Outline (DGG), Thin Very
   Small-Outline (DGV), and 300-mil Shrink
   Small-Outline (DL) Packages


Pinout

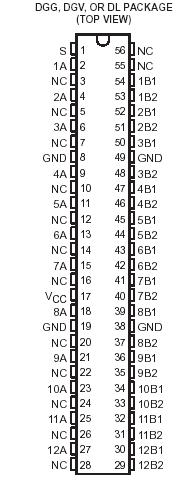

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . .. .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . .  .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . .. . .50 mA
Package thermal impedance, qJA (see Note 2): DGG package . . . . 81/W
                                                                           DGV package  . . . .86/W
                                                                           DL package  .  .  . .74/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . .. . . .65 to 150


Description

The SN74CBT16292 is a 12-bit 1-of-2 high-speed TTL-compatible FET multiplexer/ demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

When the SN74CBT16292 select (S) input is low, port A is connected to port B1 and RINT is connected to port B2. When S is high, port A is connected to port B2 and RINT is connected to port B1.

The SN74CBT16292 is characterized for operation from 40°C to 85°C.
