SN74CBT32245

PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 VInput voltage range, VI (see Note 1) . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .0.5 V to 7 V Continuous channel current . . . . . . ...

product image

SN74CBT32245 Picture
See larger image
SeekIC No. : 004498702 Detail

SN74CBT32245: PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 VInput voltage range, VI (see Note 1) . . . . . . . . . . ...

SN74CBT32245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT32245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

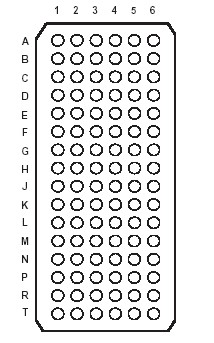

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): . . . . . . . . . . . .  . .  . . . . . . . . . . . . . . . .40°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The SN74CBT32245 device provides 32 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The SN74CBT32245 is organized as four 8-bit bus switches, two 16-bit bus switches, or one 32-bit bus switch. When output enable (OE) is low, the switch is on and port A is connected to port B. When OE is high, the switch is open and a high-impedance state exists between the two ports.

The SN74CBT32245 is characterized for operation from 40°C to 85°C.
