SN74CBTLV3125

Features:

Standard '125-Type Pinout
5- Switch Connection Between Two Ports
Rail-to-Rail Switching on Data I/O Ports
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

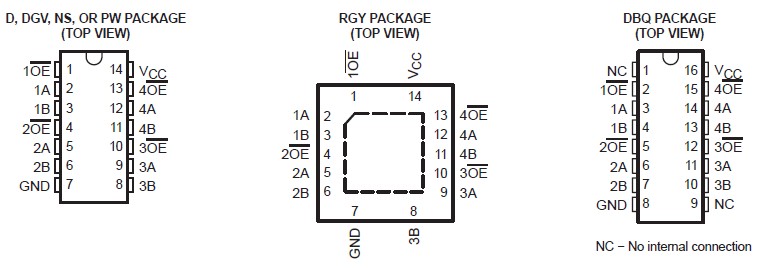

Pinout




Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
Continuous channel current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Input clamp current, I_IK (VI/O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
Package thermal impedance, _JA (see Note 2): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                    (see Note 2): DBQ package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90°C/W
                                                    (see Note 2): DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                    (see Note 2): NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W
                                                    (see Note 2): PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
                                                    (see Note 3): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
             2. The package thermal impedance is calculated in accordance with JESD 51-7.
             3. The package thermal impedance is calculated in accordance with JESD 51-5.


Description

The SN74CBTLV3125 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE) input is high.

This SN74CBTLV3125 is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver of the SN74CBTLV3125.
