SN74CBTLV3251

Features:

 5-Ω Switch Connection Between Two Ports
 Rail-to-Rail Switching on Data I/O Ports
 I_off Supports Partial-Power-Down Mode Operation
 Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


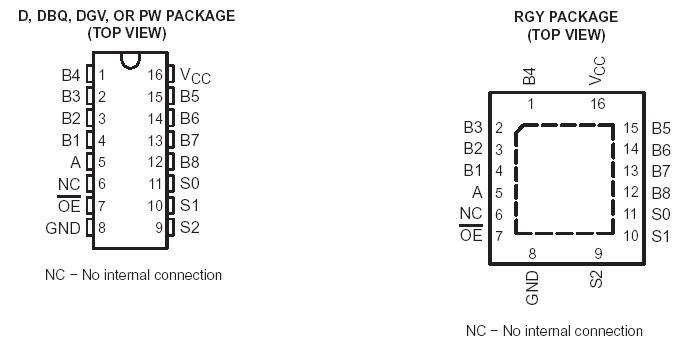

Pinout




Specifications

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     .−0.5 V to 4.6 V
Input voltage range, V_I (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.6 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . ..128 mA
Input clamp current, I_K (V_{I/O < 0}) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     .−50 mA
Package thermal impedance, _JA (see Note 2): D package  . . . . . . . . . .      73°C/W
                                                    (see Note 2): DBQ package  . . . . . . . .   . .90°C/W
                                                    (see Note 2): DGV package  . . . . . . . . . .120°C/W
                                                    (see Note 2): PW package . . . . . . . . . . .108°C/W
                                                    (see Note 3): RGY package  . . . . . . . . .   .39°C/W
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . .−65°C to 150°C


Description

   The SN74CBTLV3251 device is a 1-of-8 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

   The select inputs (S0, S1, S2) control the data flow of the SN74CBTLV3251. The FET multiplexers/demultiplexers are disabled when the output-enable (OE ) input is high.

   This SN74CBTLV3251 is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

   To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
